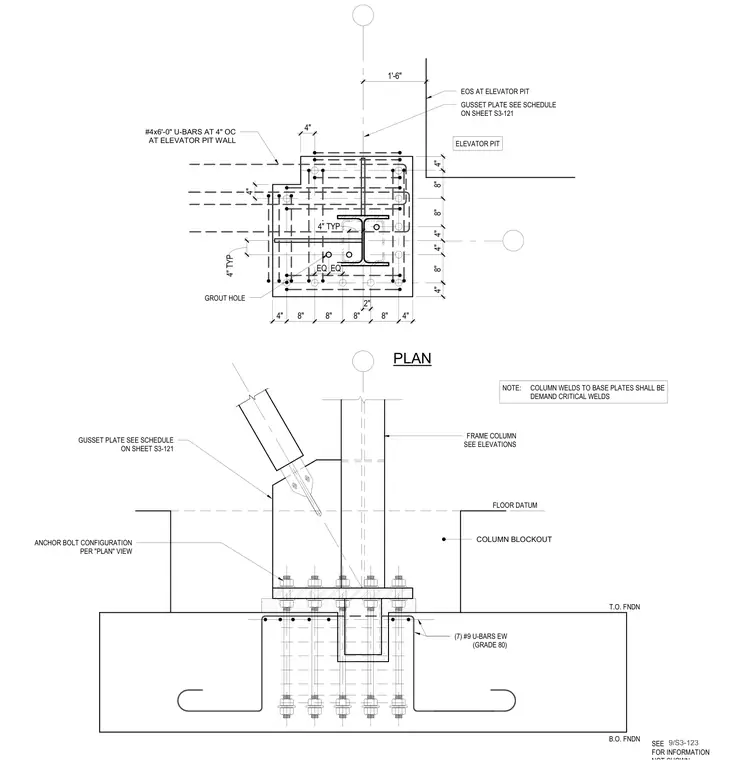

A structural steel column and an intersecting gusset plate connect to a base plate secured by anchor bolts for a buckling-restrained braced frame column base plate connection anchored to a concrete foundation. The base plate rests above a column blockout and concrete foundation detailed with reinforcing u-bars, including seven number 9 grade 80 u-bars each way and additional u-bars at the adjacent elevator pit wall. A four-inch typical grout hole is provided through the assembly. Column welds to the base plates are designated as demand critical welds. The anchor bolt configuration matches the accompanying plan view.
PLAN GUSSET PLATE SEE SCHEDULE ON SHEET S3-121 GROUT HOLE 4" TYP NOTE: COLUMN WELDS TO BASE PLATES SHALL BE DEMAND CRITICAL WELDS ELEVATOR PIT #4x6'-0" U-BARS AT 4" OC AT ELEVATOR PIT WALL 4" TYP SEE FOR INFORMATION 9/S3-123 FRAME COLUMN SEE ELEVATIONS GUSSET PLATE SEE SCHEDULE ON SHEET S3-121 FLOOR DATUM COLUMN BLOCKOUT B.O. FNDN T.O. FNDN (7) #9 U-BARS EW (GRADE 80) ANCHOR BOLT CONFIGURATION PER "PLAN" VIEW 4" 4" 8" 8" 8" 8" 4" 8" 4" 4" 8" 8" 1'-6" EOS AT ELEVATOR PIT EQ EQ 2" 4" 4" 4"
