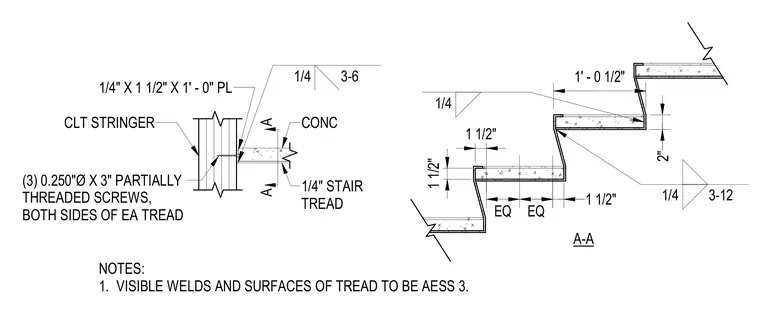

A quarter-inch thick steel plate measuring one and a half inches by one foot is anchored to the side of the cross-laminated timber stringer. A concrete stair tread ties into the stringer assembly secured by three quarter-inch diameter by three-inch partially threaded screws on each side of the tread. Visible welds and surfaces of the tread are specified as architecturally exposed structural steel category three.
A A 1/4" STAIR TREAD CLT STRINGER 1 1/2" 1 1/2" EQ EQ CONC (3) 0.250"Ø X 3" PARTIALLY THREADED SCREWS, BOTH SIDES OF EA TREAD A-A 1' - 0 1/2" 2" 1 1/2" 1/4 3-12 1/4 3-6 1/4 1/4" X 1 1/2" X 1' - 0" PL NOTES: 1. VISIBLE WELDS AND SURFACES OF TREAD TO BE AESS 3.
