Reinforced Concrete Column Sections with Spiral Reinforcement

Materials

About this detail

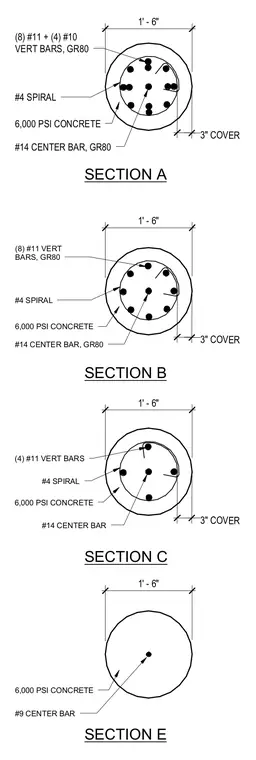

Circular concrete column sections feature a diameter of one foot six inches with three inches of concrete cover. The structural matrix utilizes six thousand PSI concrete reinforced with Grade 80 vertical bars, number four spiral ties, and a central longitudinal bar. Section A incorporates eight number eleven bars and four number ten vertical bars with a number fourteen center bar. Section B contains eight number eleven vertical bars and a number fourteen center bar. Section C uses four number eleven vertical bars and a number fourteen center bar. Section E contains plain concrete with a single number nine center bar.
