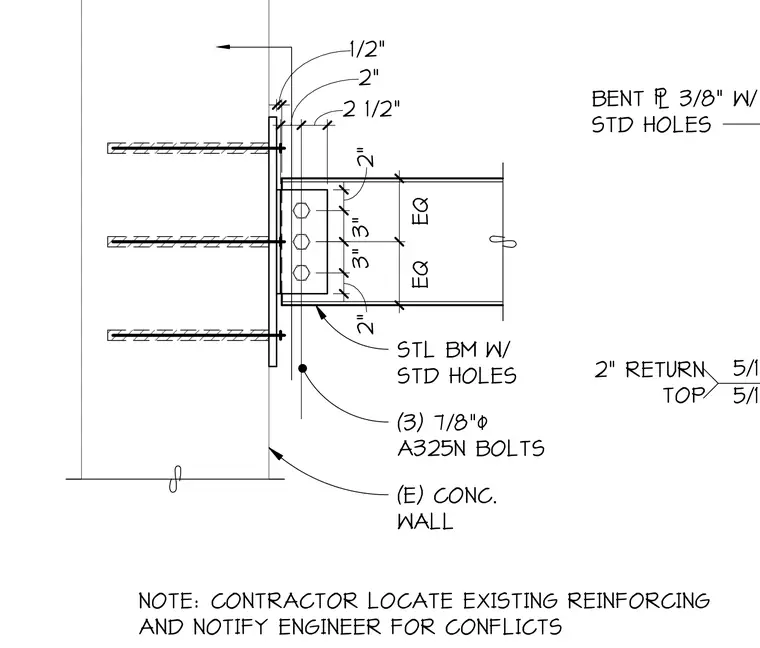

A steel beam with standard holes connects to an existing concrete wall via a three-eighths-inch bent plate. The connection utilizes three seven-eighths-inch diameter A325N bolts through the beam web. Five-sixteenths-inch welds with two-inch returns secure the bent plate assembly. The contractor must locate existing reinforcing steel and notify the engineer for any conflicts.
STL BM W/ STD HOLES (3) 7/8"/ A325N BOLTS (E) CONC. WALL 5/16 5/16 2" RETURN TOP BENT 3/8" W/ STD HOLES NOTE: CONTRACTOR LOCATE EXISTING REINFORCING AND NOTIFY ENGINEER FOR CONFLICTS 2 1/2" 2" 2" 3" 3" 2" EQ EQ 1/2"
