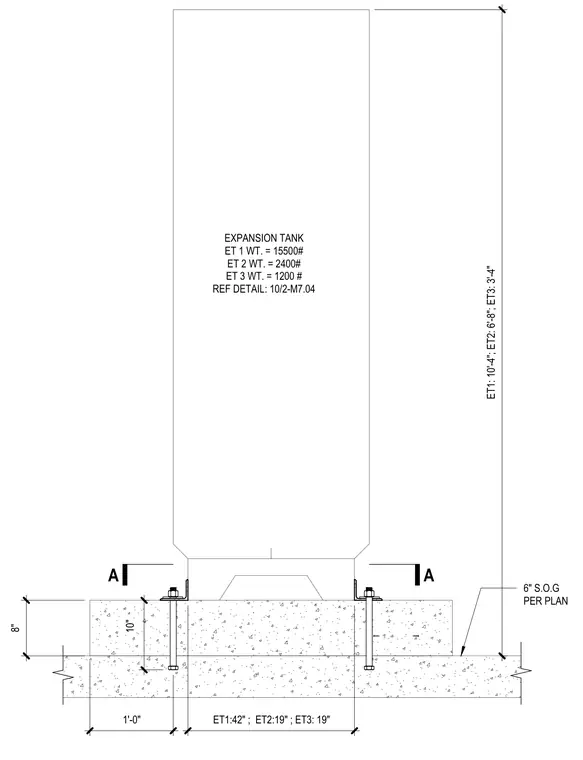

An expansion tank is anchored to a concrete slab on grade using base plate connections secured by anchor bolts. The assembly supports vertical tanks ranging in weight from 1,200 to 15,500 pounds, with heights varying between 3 feet 4 inches and 10 feet 4 inches. The concrete housekeeping pad measures 8 inches to 10 inches in depth, bearing on a 6-inch slab on grade per plan. Anchor bolts secure the tank support brackets directly into the concrete foundation.
EXPANSION TANK ET 1 WT. = 15500# ET 2 WT. = 2400# ET 3 WT. = 1200 # REF DETAIL: 10/2-M7.04 ET1: 10'-4"; ET2: 6'-8"; ET3: 3'-4" ET1:42" ; ET2:19" ; ET3: 19" 8" 1'-0" 10" A A 6" S.O.G PER PLAN
