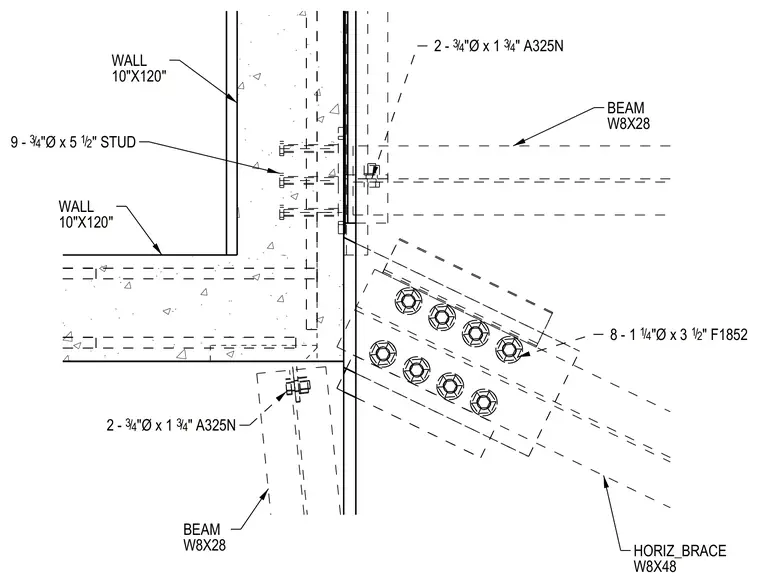

A structural steel W8X48 horizontal brace connects to a concrete wall utilizing eight 1-1/4 inch diameter by 3-1/2 inch long F1852 bolts. Framing beams including W8X28 members tie into the concrete wall with groups of two 3/4 inch diameter by 1-3/4 inch long A325N bolts. The concrete wall, measuring 10 inches by 120 inches, embeds nine 3/4 inch diameter by 5-1/2 inch studs for anchorage.
9 - 3 4 / "Ø x 5 1 2 / " STUD WALL 10"X120" BEAM W8X28 WALL 10"X120" HORIZ_BRACE W8X48 8 - 1 1 4 / "Ø x 3 1 2 / " F1852 BEAM W8X28 2 - 3 4 / "Ø x 1 3 4 / " A325N 2 - 3 4 / "Ø x 1 3 4 / " A325N
