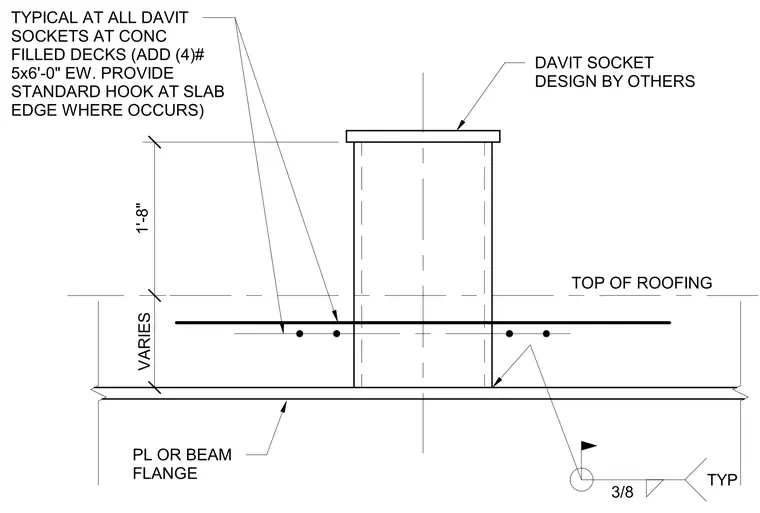

A structural detail showing a davit socket mounted to a steel plate or beam flange at a concrete filled deck. Four number five reinforcing bars at six feet zero inches each way are added around the socket, with standard hooks provided at the slab edge where applicable. The socket design is by others and extends one foot eight inches above the structural support. Field welding includes a three-eighths inch fillet weld with field weld symbol at typical connections.
TYPICAL AT ALL DAVIT SOCKETS AT CONC FILLED DECKS (ADD (4)# 5x6'-0" EW. PROVIDE STANDARD HOOK AT SLAB EDGE WHERE OCCURS) PL OR BEAM FLANGE TOP OF ROOFING DAVIT SOCKET DESIGN BY OTHERS VARIES 1'-8" 3/8 TYP
