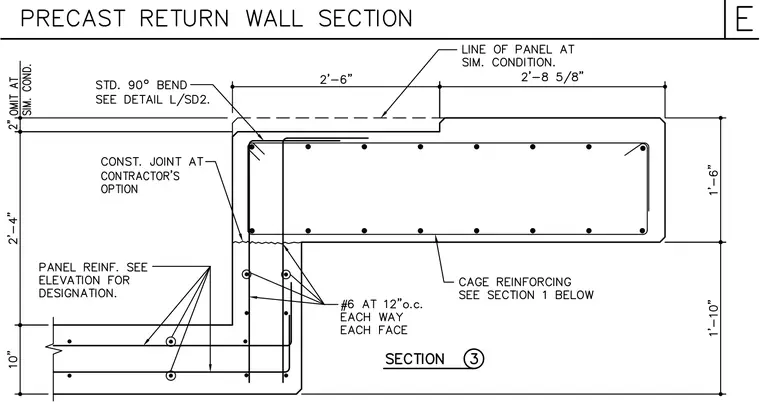

This structural section details a precast concrete return wall assembly with a thickness of one foot six inches and varying leg dimensions of two feet six inches and two feet eight and five-eighths inches. The concrete assembly incorporates internal cage reinforcing with size six rebar spaced at twelve inches on center each way and each face, as well as standard ninety-degree bends detailed per secondary drawings. A construction joint is positioned at the contractor's option, and panel reinforcement designations are referenced to the main elevation.
