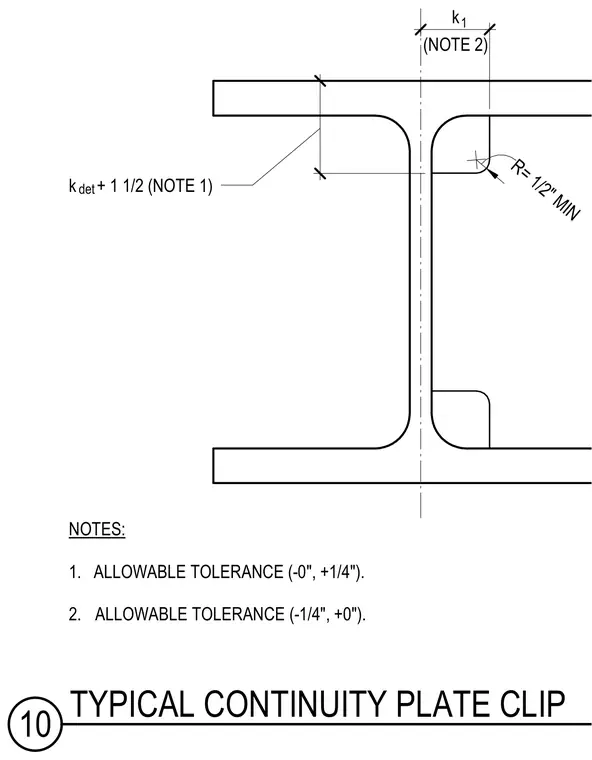

A wide-flange steel section displays detailing requirements for continuity plate clips. The web-to-flange junction incorporates a minimum one-half-inch radius clip with specific dimensional callouts for the k-distance and allowable fabrication tolerances of minus zero to plus one-quarter inch.
NOTES: 1. ALLOWABLE TOLERANCE (-0", +1/4"). 2. ALLOWABLE TOLERANCE (-1/4", +0"). 3 1/2" 2 5/8" k (NOTE 2) k + 1 1/2 (NOTE 1) det 1 R= 1/2" MIN 10 TYPICAL CONTINUITY PLATE CLIP
