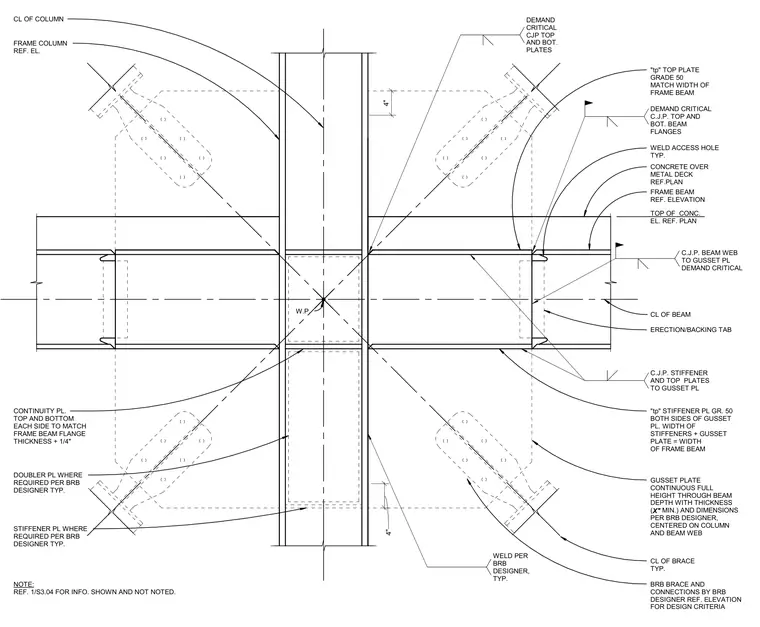

This structural detail shows a steel frame column intersecting horizontal frame beams with diagonal buckling-restrained braces framed into the connection. A continuous vertical gusset plate passes through the beam depth, centered on the column and beam web, flanked by Grade 50 stiffener plates. Grade 50 top plates match the width of the frame beam and connect to the gusset plate with complete joint penetration welds. Continuity plates on each side of the column web match the frame beam flange thickness plus one-quarter inch. Demand critical complete joint penetration welds attach the beam flanges and top and bottom plates, with weld access holes provided at the beam webs. Additional doubler plates and stiffener plates are included where required per the buckling-restrained brace designer.
CL OF COLUMN TOP OF CONC. EL. REF. PLAN FRAME BEAM REF. ELEVATION CONCRETE OVER METAL DECK REF.PLAN FRAME COLUMN REF. EL. CL OF BRACE TYP. W.P. CONTINUITY PL. TOP AND BOTTOM EACH SIDE TO MATCH FRAME BEAM FLANGE THICKNESS + 1/4" DOUBLER PL WHERE REQUIRED PER BRB DESIGNER TYP. STIFFENER PL WHERE REQUIRED PER BRB DESIGNER TYP. NOTE: REF. 1/S3.04 FOR INFO. SHOWN AND NOT NOTED. "tp" STIFFENER PL GR. 50 BOTH SIDES OF GUSSET PL. WIDTH OF STIFFENERS + GUSSET PLATE = WIDTH OF FRAME BEAM CL OF BEAM GUSSET PLATE CONTINUOUS FULL HEIGHT THROUGH BEAM DEPTH WITH THICKNESS ( X" MIN.) AND DIMENSIONS PER BRB DESIGNER, CENTERED ON COLUMN AND BEAM WEB DEMAND CRITICAL CJP TOP AND BOT. PLATES BRB BRACE AND CONNECTIONS BY BRB DESIGNER REF. ELEVATION FOR DESIGN CRITERIA ERECTION/BACKING TAB WELD PER BRB DESIGNER, TYP. DEMAND CRITICAL C.J.P. TOP AND BOT. BEAM FLANGES C.J.P. STIFFENER AND TOP PLATES TO GUSSET PL C.J.P. BEAM WEB TO GUSSET PL DEMAND CRITICAL WELD ACCESS HOLE TYP. "tp" TOP PLATE GRADE 50 MATCH WIDTH OF FRAME BEAM 4" 4"
