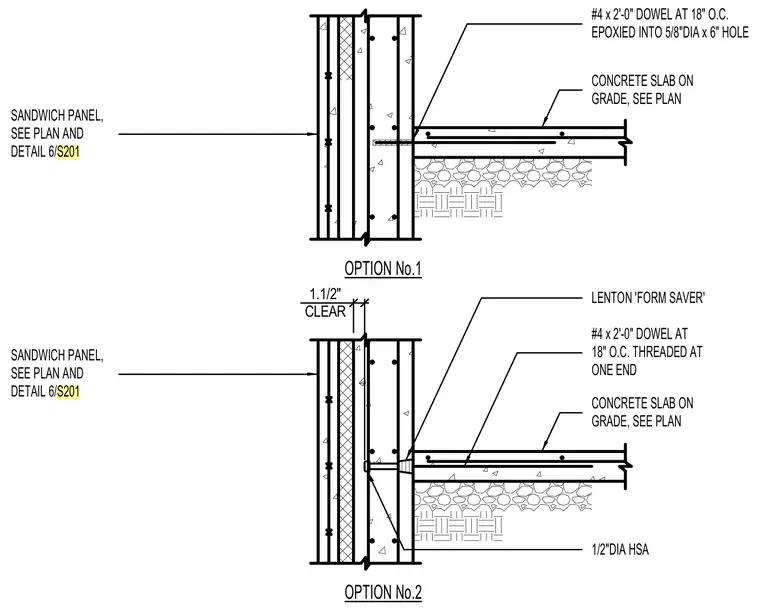

Option 1 connects a concrete slab on grade to a sandwich panel using number 4 by two-foot dowels spaced at eighteen inches on center, epoxied into five-eighth-inch diameter by six-inch holes. Option 2 provides a similar slab-to-panel connection featuring number 4 by two-foot dowels threaded at one end, utilizing a Lenton Form Saver coupler with a one-and-a-half-inch clear space and a half-inch diameter HSA anchor.
OPTION No.1 OPTION No.2 SANDWICH PANEL, SEE PLAN AND DETAIL 6/S201 CONCRETE SLAB ON GRADE, SEE PLAN CONCRETE SLAB ON GRADE, SEE PLAN #4 x 2'-0" DOWEL AT 18" O.C. EPOXIED INTO 5/8"DIA x 6" HOLE #4 x 2'-0" DOWEL AT 18" O.C. THREADED AT ONE END 1/2"DIA HSA LENTON 'FORM SAVER' SANDWICH PANEL, SEE PLAN AND DETAIL 6/S201 1.1/2" CLEAR
