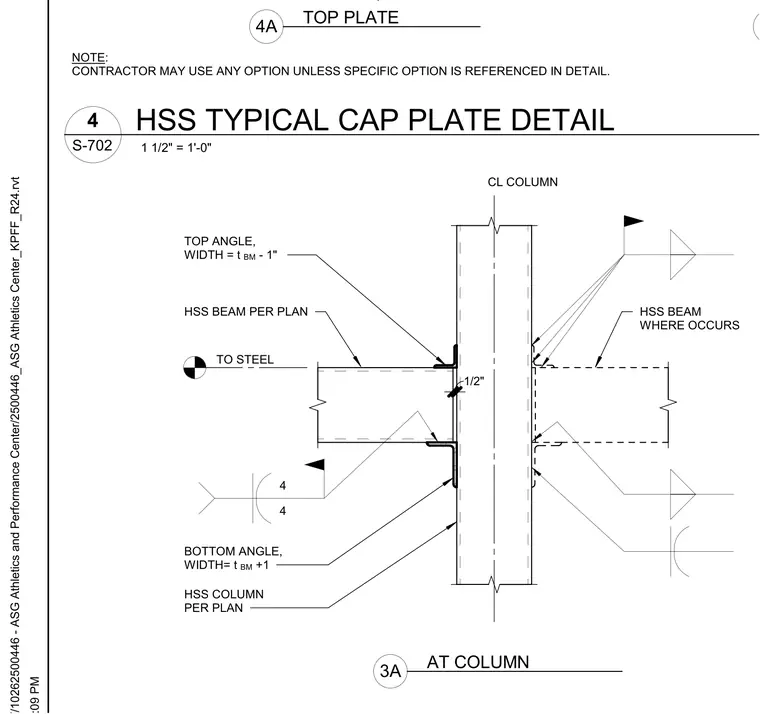

An hollow structural section beam frames into an hollow structural section column utilizing a top angle and a bottom angle. The top angle features a width equal to the beam thickness minus one inch, while the bottom angle features a width equal to the beam thickness plus one inch, with a one-half inch gap maintained at the column centerline. A general note permits the contractor to use any connection option unless a specific option is referenced in the detail.
CL COLUMN HSS BEAM PER PLAN TOP ANGLE, WIDTH = t BM - 1" BOTTOM ANGLE, WIDTH= t BM +1 4 4 HSS COLUMN PER PLAN HSS BEAM WHERE OCCURS TO STEEL 1/2" NOTE: CONTRACTOR MAY USE ANY OPTION UNLESS SPECIFIC OPTION IS REFERENCED IN DETAIL. 3A AT COLUMN S-702 1 1/2" = 1'-0" 4 HSS TYPICAL CAP PLATE DETAIL 4A TOP PLATE
