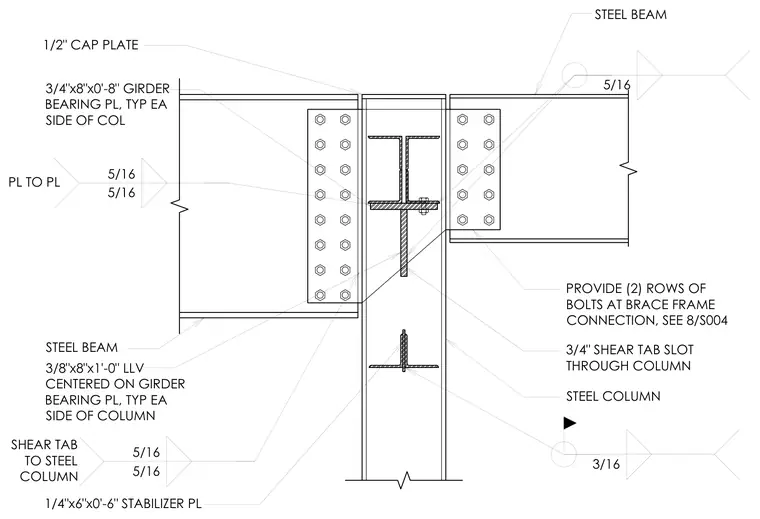

Steel beams frame into a steel column using bolted shear tabs welded to the column flange and web. A one-half-inch cap plate caps the column, flanked by three-quarter-inch by eight-inch girder bearing plates on each side. A three-eighths-inch by eight-inch by one-foot vertical stiffener plate is centered on the girder bearing plate on each side of the column. A one-quarter-inch by six-inch by six-inch stabilizer plate is also provided. Five-sixteenths-inch and three-sixteenths-inch fillet welds secure the plates.
STEEL COLUMN STEEL BEAM STEEL BEAM 1/2" CAP PLATE SHEAR TAB TO STEEL COLUMN PROVIDE (2) ROWS OF BOLTS AT BRACE FRAME CONNECTION, SEE 8/S004 1/4"x6"x0'-6" STABILIZER PL 3/4" SHEAR TAB SLOT THROUGH COLUMN 3/8"x8"x1'-0" LLV CENTERED ON GIRDER BEARING PL, TYP EA SIDE OF COLUMN 3/4"x8"x0'-8" GIRDER BEARING PL, TYP EA SIDE OF COL PL TO PL 5/16 3/16 5/16 5/16 5/16 5/16
