Structural · S-99TG2

Raised Concrete Pad on Untopped Metal Deck

Materials

Concrete Metal (misc.)

Elements

Beams Walls Decks Arches Reinforcing

Connections

Rebar Splice / Development

About this detail

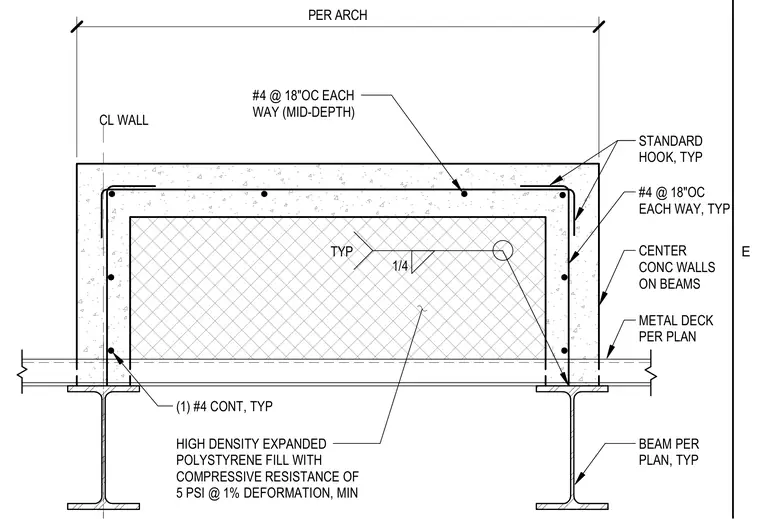

A concrete raised pad is centered over structural steel beams and metal deck per plan, filled with high-density expanded polystyrene providing a minimum compressive resistance of five pounds per square inch at one percent deformation. The surrounding concrete curb wall is reinforced with number four bars at eighteen inches on center each way at mid-depth and vertical wall faces, terminating in standard hooks. Continuous number four reinforcing bars run horizontally near the base of the wall. Steel beams support the entire assembly beneath the metal deck.
