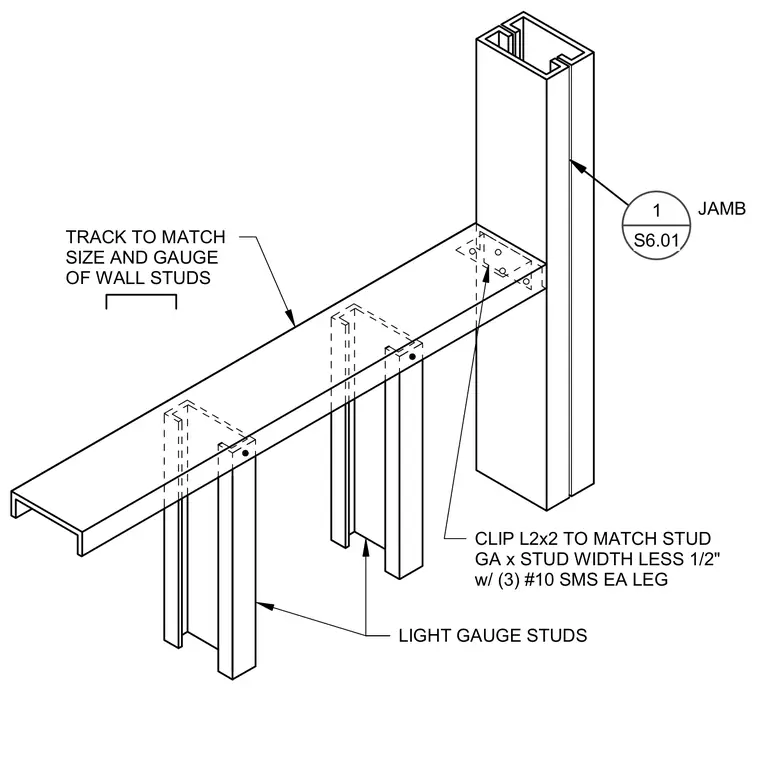

Light gauge steel wall studs bear onto a horizontal bottom track sized to match the size and gauge of the wall studs. A two-inch by two-inch angle clip with a gauge matching the stud and a width equal to the stud width less one-half inch connects the track to the jamb. Three number ten sheet metal screws secure each leg of the clip.
LIGHT GAUGE STUDS TRACK TO MATCH SIZE AND GAUGE OF WALL STUDS CLIP L2x2 TO MATCH STUD GA x STUD WIDTH LESS 1/2" w/ (3) #10 SMS EA LEG JAMB 1 S6.01
