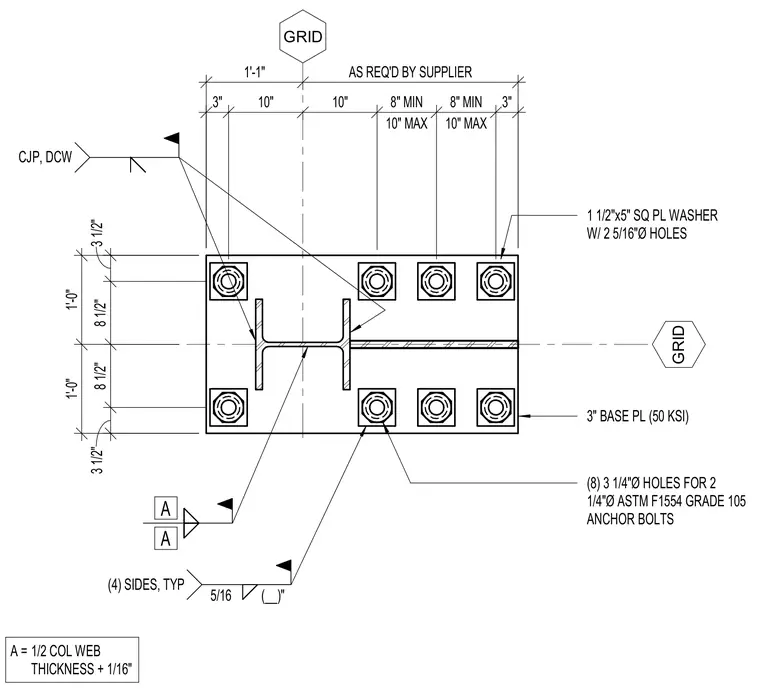

A heavy brace frame base plate connection is anchored by eight two-and-a-quarter-inch-diameter ASTM F1554 Grade 105 anchor bolts. The three-inch-thick base plate, fabricated from 50 KSI steel, features eight three-and-a-quarter-inch-diameter bolt holes and is accompanied by one-and-a-half-inch by five-inch square plate washers with two-and-five-sixteenths-inch-diameter holes. Complete joint penetration welds and five-sixteenths-inch fillet welds secure the column web and flanges to the base plate. Dimensioning provides precise spacing and edge distances relative to grid lines for accurate field installation.
GRID GRID 1 1/2"x5" SQ PL WASHER W/ 2 5/16"Ø HOLES 3" BASE PL (50 KSI) (8) 3 1/4"Ø HOLES FOR 2 1/4"Ø ASTM F1554 GRADE 105 ANCHOR BOLTS 1'-1" AS REQ'D BY SUPPLIER 3" 10" 10" 10" MAX 8" MIN 10" MAX 8" MIN 3" 3 1/2" 8 1/2" 8 1/2" 3 1/2" 1'-0" 1'-0" 5/16 (__)" (4) SIDES, TYP CJP, DCW A A A = 1/2 COL WEB THICKNESS + 1/16"
