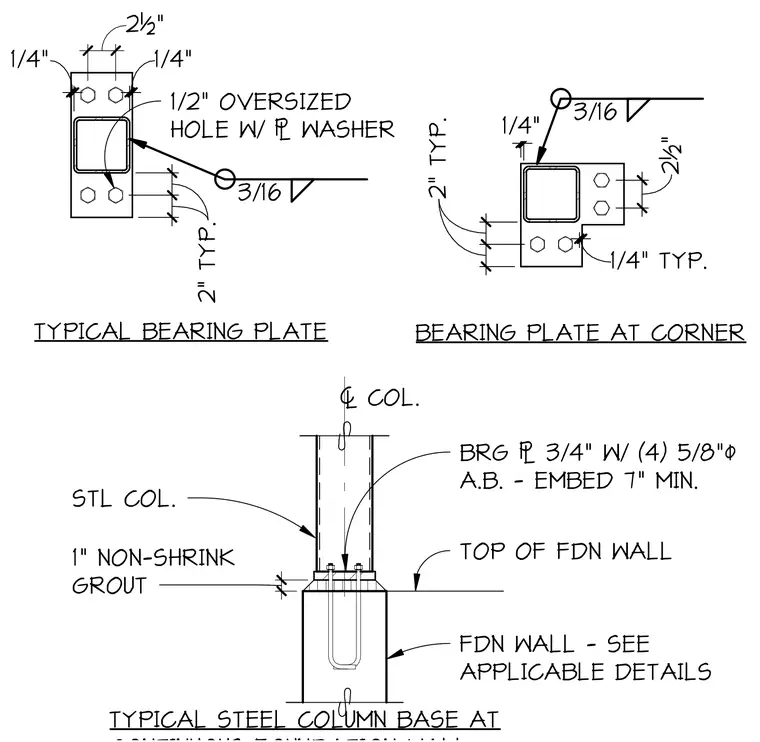

A structural steel column bears on a three-quarter-inch bearing plate anchored to the top of a concrete foundation wall with four five-eighth-inch anchor bolts embedded seven inches minimum. A one-inch layer of non-shrink grout fills the space beneath the base plate and above the foundation wall. The detail includes plan views of typical bearing plates and corner bearing plates with half-inch oversized holes, plate washers, and three-sixteenth-inch fillet welds.
1" NON-SHRINK GROUT STL COL. TOP OF FDN WALL BRG - 3/4" W/ (4) 5/8". A.B. - EMBED 7" MIN. FDN WALL - SEE APPLICABLE DETAILS / COL. BEARING PLATE AT CORNER TYPICAL BEARING PLATE 2" TYP. 2" TYP. 2½" 1/4" TYP. 2½" 2" TYP. 2" TYP. 1/4" 1/2" OVERSIZED HOLE W/ - WASHER 3/16 1/4" 3/16 1/4" TYPICAL STEEL COLUMN BASE AT
