Typical Screwed Holdown Post Details and PWJ Hanger Schedule

About this detail

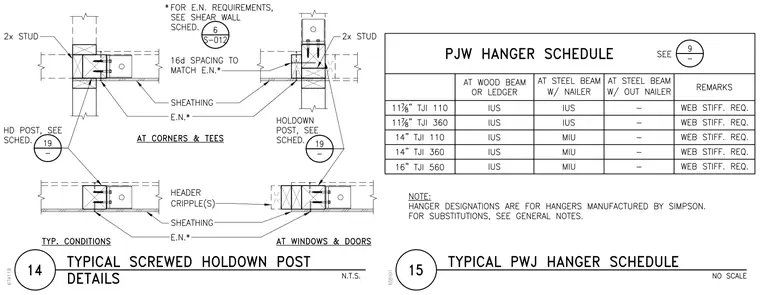

Screwed holdown post connection details accompany a manufactured wood joist hanger schedule. Framing configurations at corners and tees, standard conditions, and windows or doors incorporate 2x studs, holdown posts, headers, cripples, sheathing, and edge nailing. Edge nailing spacing and requirements are coordinated with the shear wall schedule. Simpson hanger designations for various depths of TJI joists supported by wood beams, steel beams with nailers, or steel beams without nailers are specified in the hanger schedule, with web stiffener requirements noted where applicable.
