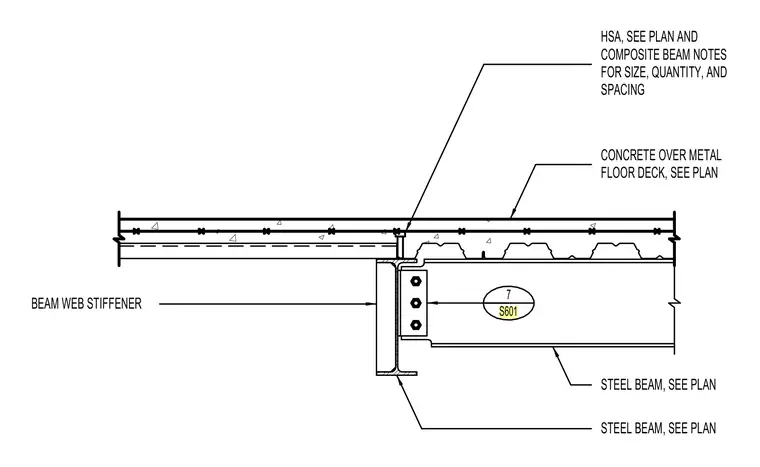

A structural steel beam supports a concrete slab poured over a metal floor deck, tied together with shear stud anchors sized and spaced per plan and composite beam notes. A beam web stiffener is welded to the supporting steel member at the intersection. The intersecting steel beam connects via a bolted framing angle or shear tab connection, with member sizes and quantities determined by structural plans.
7 S601 CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN BEAM WEB STIFFENER HSA, SEE PLAN AND COMPOSITE BEAM NOTES FOR SIZE, QUANTITY, AND SPACING
