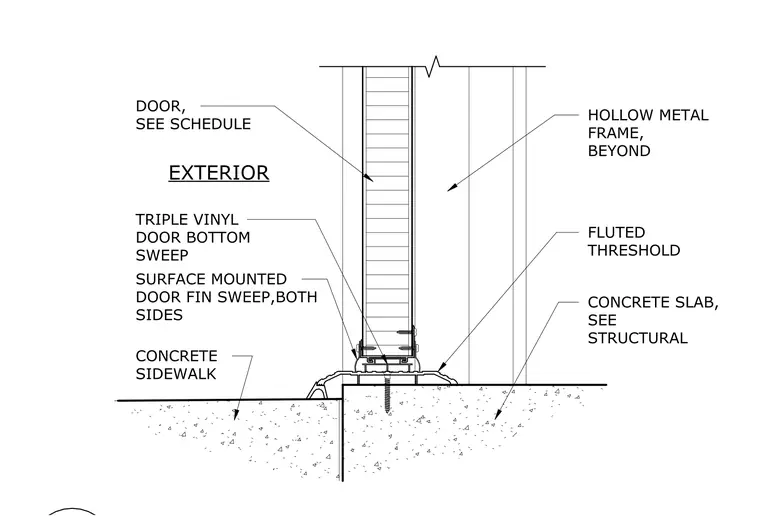

This assembly shows an exterior door bottom condition meeting a concrete slab and adjacent concrete sidewalk. A fluted threshold is anchored to the concrete slab, providing a transition between the interior floor and exterior grade. The door leaf is equipped with a triple vinyl door bottom sweep and surface-mounted door fin sweeps on both sides to provide weather sealing. The hollow metal frame is shown beyond the section cut, and the door type is referenced to the door schedule.
Text on the drawing
EXTERIOR DOOR, SEE SCHEDULE SURFACE MOUNTED DOOR FIN SWEEP,BOTH SIDES CONCRETE SIDEWALK FLUTED THRESHOLD CONCRETE SLAB, SEE STRUCTURAL HOLLOW METAL FRAME, BEYOND TRIPLE VINYL DOOR BOTTOM SWEEP 11 SCALE: 3" = 1'-0" H.M. DOOR JAMB
