Structural · S-98CH7

Suspended Loads From Metal Deck

Materials

Elements

About this detail

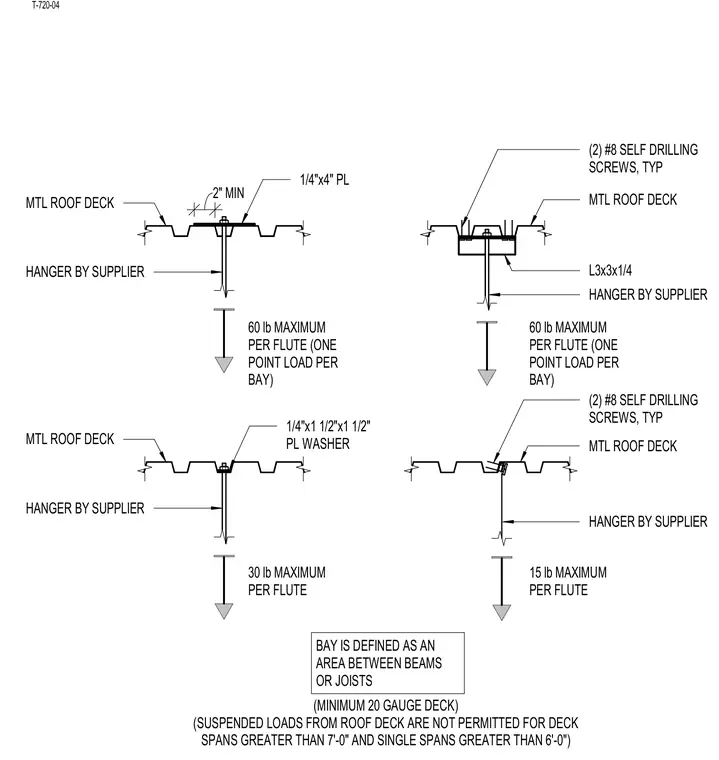

Suspended loads are anchored to a minimum twenty gauge metal roof deck using supplier-provided hangers secured with plates, washers, angles, and two number eight self-drilling screws. The assembly accommodates various load capacities ranging from fifteen to sixty pounds maximum per flute, depending on the attachment configuration and one point load per bay limit. Suspended loads from the roof deck are prohibited for deck spans greater than seven feet and single spans greater than six feet, where a bay is defined as the area between beams or joists.
