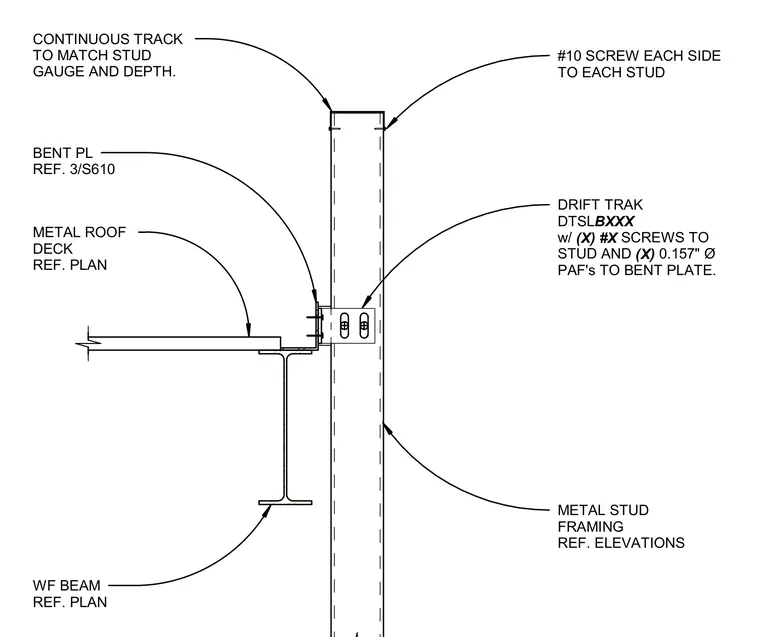

Cold-formed steel stud balloon framing connects to a roof assembly utilizing a drift track fastened to the stud with screws and to a bent plate with powder-actuated fasteners. A continuous track matches the stud gauge and depth, secured at each side with number 10 screws. The metal roof deck bears on a wide flange beam with a bent plate connection referenced on structural plans.
DRIFT TRAK DTSL BXXX w/ (X) #X SCREWS TO STUD AND (X) 0.157" Ø PAF's TO BENT PLATE. METAL STUD FRAMING REF. ELEVATIONS METAL ROOF DECK REF. PLAN WF BEAM REF. PLAN CONTINUOUS TRACK TO MATCH STUD GAUGE AND DEPTH. #10 SCREW EACH SIDE TO EACH STUD BENT PL REF. 3/S610
