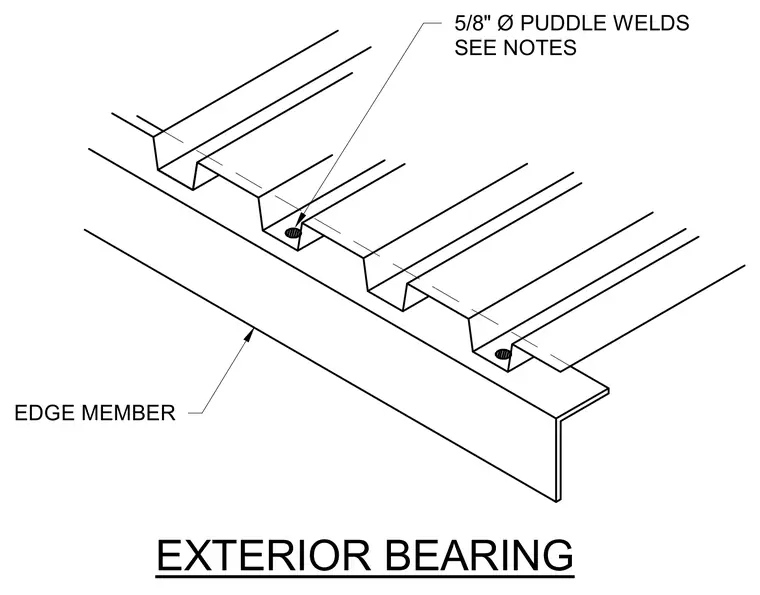

Metal deck bears directly on an exterior structural edge member. The metal deck is secured to the supporting member using five-eighths inch diameter puddle welds placed according to project notes.
