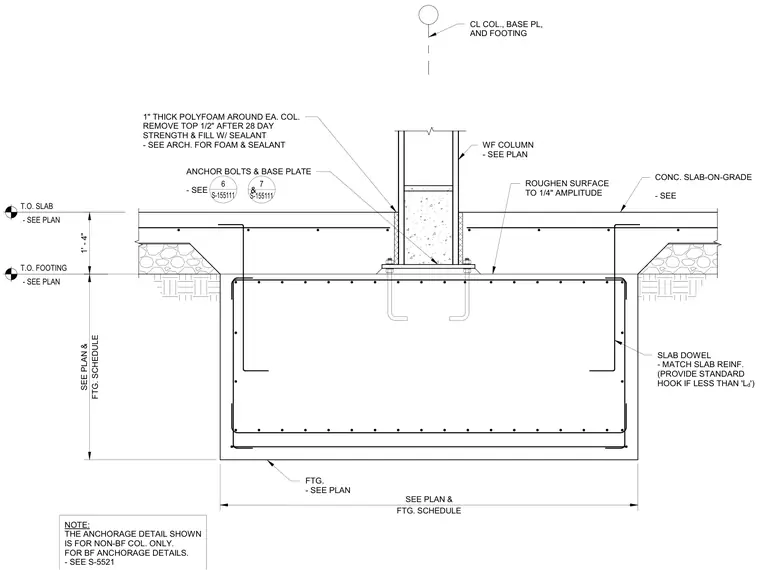

An interior gravity wide-flange steel column anchors to a reinforced concrete footing supporting a concrete slab-on-grade. The column features a base plate secured with anchor bolts, enclosed by a one-inch thick polyfoam wrap that is later partially removed and filled with sealant. The concrete footing top surface is roughened to a quarter-inch amplitude beneath the slab-on-grade, which includes slab dowels matching the slab reinforcement with standard hooks provided if development length is less than required. A vertical dimension of one foot four inches separates the top of the footing from the top of the slab. A drawing note specifies that this anchorage detail applies to non-lateral force-resisting frame columns only, directing users to sheet S-5521 for lateral force-resisting frame anchorage details.
ANCHOR BOLTS & BASE PLATE - SEE & 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. FOR FOAM & SEALANT T.O. FOOTING - SEE PLAN CONC. SLAB-ON-GRADE - SEE T.O. SLAB - SEE PLAN 6 S-155111 7 S-155111 WF COLUMN - SEE PLAN CL COL., BASE PL, AND FOOTING ROUGHEN SURFACE TO 1/4" AMPLITUDE SLAB DOWEL - MATCH SLAB REINF. (PROVIDE STANDARD HOOK IF LESS THAN 'L d ') FTG. - SEE PLAN NOTE: THE ANCHORAGE DETAIL SHOWN IS FOR NON-BF COL. ONLY. FOR BF ANCHORAGE DETAILS. - SEE S-5521 FTG. SCHEDULE SEE PLAN & FTG. SCHEDULE SEE PLAN & 1' - 4"
