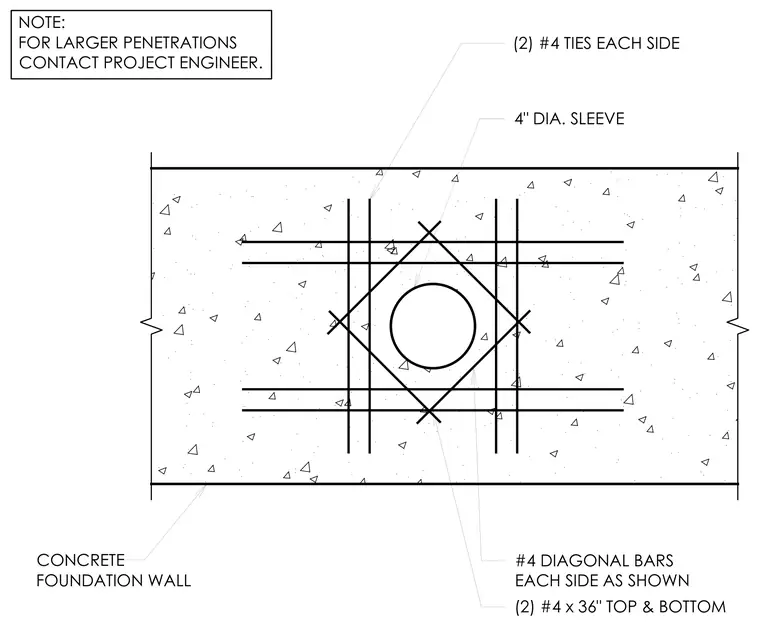

A four-inch diameter sleeve passes through a concrete foundation wall with surrounding reinforcing steel. Two number four ties run on each side of the opening. Number four diagonal bars are placed on each side as shown. Two number four bars measuring thirty-six inches long run across the top and bottom. A note directs that for larger penetrations, the project engineer must be contacted.
#4 DIAGONAL BARS EACH SIDE AS SHOWN (2) #4 x 36" TOP & BOTTOM 4" DIA. SLEEVE (2) #4 TIES EACH SIDE CONCRETE FOUNDATION WALL NOTE: FOR LARGER PENETRATIONS CONTACT PROJECT ENGINEER. A b tb A ^ b • A . . tb b b A 4d A b b tb . A Id £d ■ ■ A 4^ l ' A A zs S. \fc • A \ s/ A. ‘ =. / id A Id IT Id t. t ^ • A b A b A id A •' id A id A • ■ b ' • CdA A b • b. .tb A •
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
