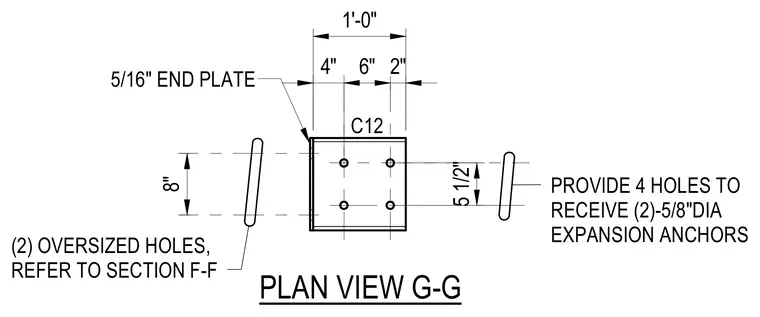

A C12 channel connects to a 5/16-inch end plate detailed with two oversized holes on one side and four holes configured to receive two 5/8-inch diameter expansion anchors on the other. The channel layout measures 1 foot 0 inches wide with internal spacings of 4 inches, 6 inches, and 2 inches. Anchor spacing measures 8 inches vertically and 5 1/2 inches horizontally.
PLAN VIEW G-G 5/16" END PLATE (2) OVERSIZED HOLES, REFER TO SECTION F-F PROVIDE 4 HOLES TO RECEIVE (2)-5/8"DIA EXPANSION ANCHORS C12 8" 4" 6" 2" 1'-0" 5 1/2"
