Web penetrations must be located within the middle third of the beam depth and maintain minimum clearance distances from beam ends and intersecting members. Openings are prohibited within ten feet of any column above the beam end. Clearances require a minimum distance of two times the beam depth from supports for penetrations outside the middle third of the span. Shear plates and bolts connect framing members per structural specifications.

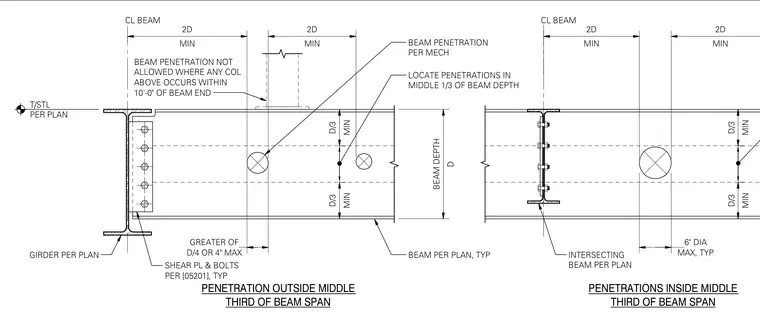

MIN 2D MIN 2D CL BEAM INTERSECTING BEAM PER PLAN PENETRATIONS INSIDE MIDDLE THIRD OF BEAM SPAN D BEAM DEPTH BEAM PENETRATION PER MECH BEAM PER PLAN, TYP LOCATE PENETRATIONS IN MIDDLE 1/3 OF BEAM DEPTH PENETRATION OUTSIDE MIDDLE THIRD OF BEAM SPAN T/STL PER PLAN MIN D/3 MIN D/3 GIRDER PER PLAN MIN 2D CL BEAM MIN 2D BEAM PENETRATION NOT ALLOWED WHERE ANY COL ABOVE OCCURS WITHIN 10'-0" OF BEAM END MIN D/3 MIN D/3 D/4 OR 4" MAX GREATER OF MAX, TYP 6" DIA SHEAR PL & BOLTS PER [05201], TYP
