Structural · S-977WH

Composite Deck - Small

Materials

Concrete Steel Composite

Elements

Beams Floors / Slabs Decks Roof / Floor Openings

Connections

Shear Stud / Composite Deck Attachment

About this detail

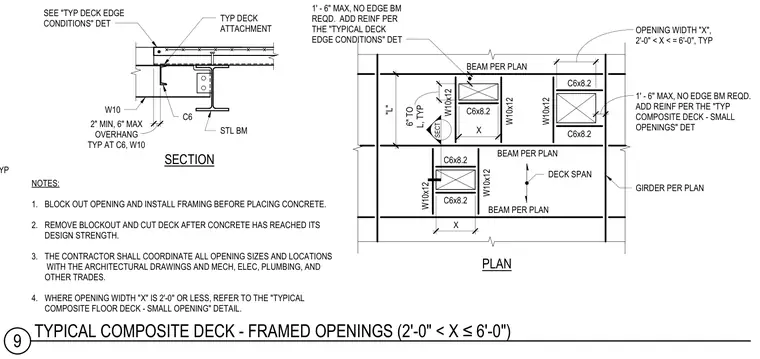

A framed floor opening in a composite metal deck and concrete slab assembly accommodates spans between two and six feet. The plan layout features W10x12 steel beams and C6x8.2 channel headers framing around the opening dimension X. The section view details the deck attachment over the steel framing with a two-inch minimum and six-inch maximum overhang. Contractor notes specify blocking out the opening and installing framing prior to placing concrete, and cutting the deck only after the concrete reaches design strength. Coordination with architectural, mechanical, electrical, and plumbing trades is required.
