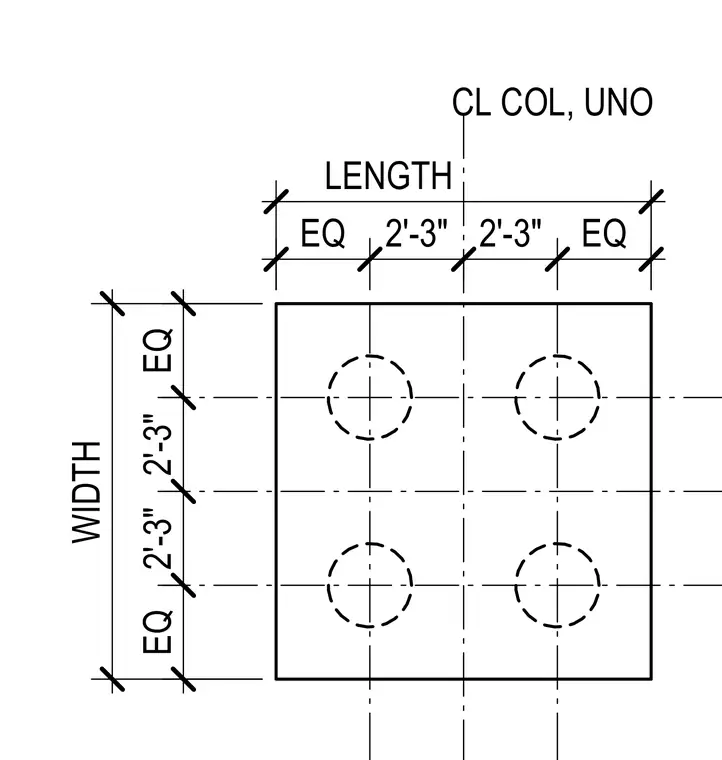

A rectangular structural steel base plate is dimensioned symmetrically about the column centerline, denoted as CL COL, UNO. Four anchor bolt locations are indicated by dashed circles positioned at two-foot three-inch spacings in both orthogonal directions. Equal edge distances frame the bolt pattern along the length and width dimensions.
