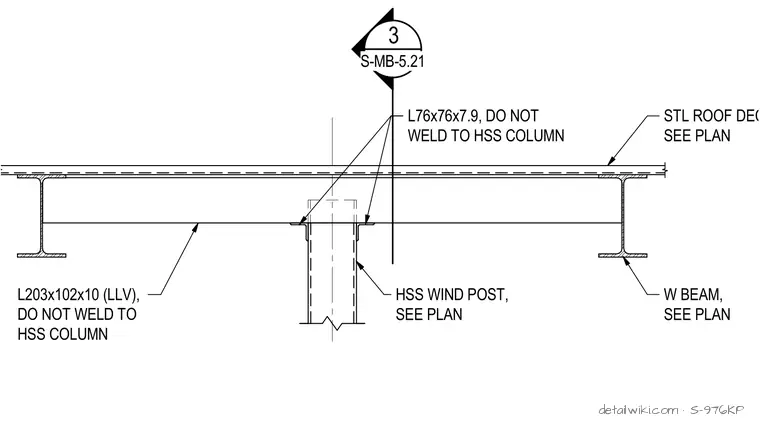

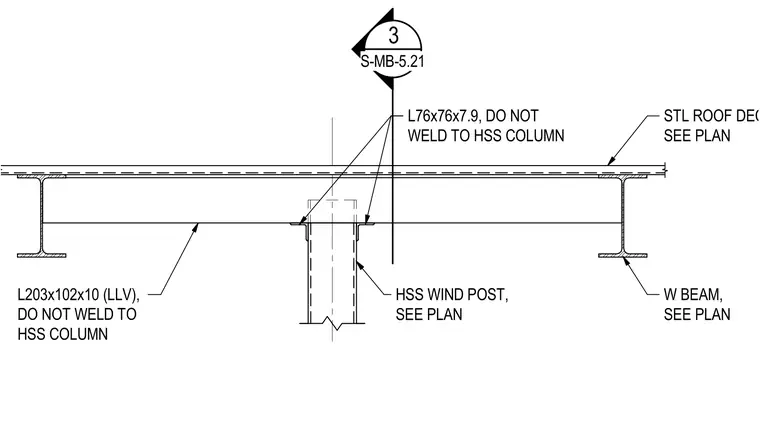

S-976KP — Wind Post Between W Beams

Structural · S-976KP

Wind Post Between W Beams

Units: metric
Sheet: S-MB-5.21
Discipline: Structural

Materials

Elements

Beams Columns Connections / Plates Decks Roofs

Connections

Beam-to-Column Expansion / Slip Connection HSS Connection Welded Connection

Text on the drawing

L76x76x7.9, DO NOT WELD TO HSS COLUMN HSS WIND POST, SEE PLAN L203x102x10 (LLV), DO NOT WELD TO HSS COLUMN STL ROOF DECK, SEE PLAN W BEAM, SEE PLAN 3 S-MB-5.21

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
