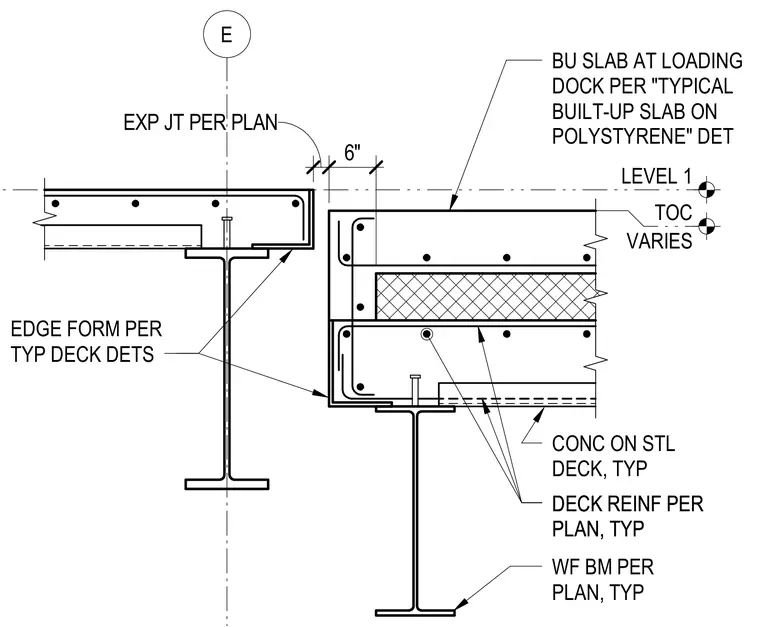

A six-inch built-up concrete slab bears on wide-flange steel beams with typical concrete on steel deck construction and specified deck reinforcement. The built-up assembly incorporates a polystyrene insulation core separating the upper and lower concrete layers. Edge forms are detailed per typical deck standards at the perimeter. An expansion joint separates the loading dock slab assembly from the adjacent structural steel framed floor plate.
E LEVEL 1 VARIES TOC CONC ON STL DECK, TYP DECK REINF PER PLAN, TYP WF BM PER PLAN, TYP DECK REINF PER PLAN, TYP EXP JT PER PLAN 6" BU SLAB AT LOADING DOCK PER "TYPICAL BUILT-UP SLAB ON POLYSTYRENE" DET EDGE FORM PER TYP DECK DETS
