A wide flange beam frames into the web of a wide flange column with a bolted connection. The beam flanges are coped as required to clear the column flanges. Weld, plate, and bolt sizes are referenced to the structural schedule and companion details. The top of the column condition is indicated where applicable.

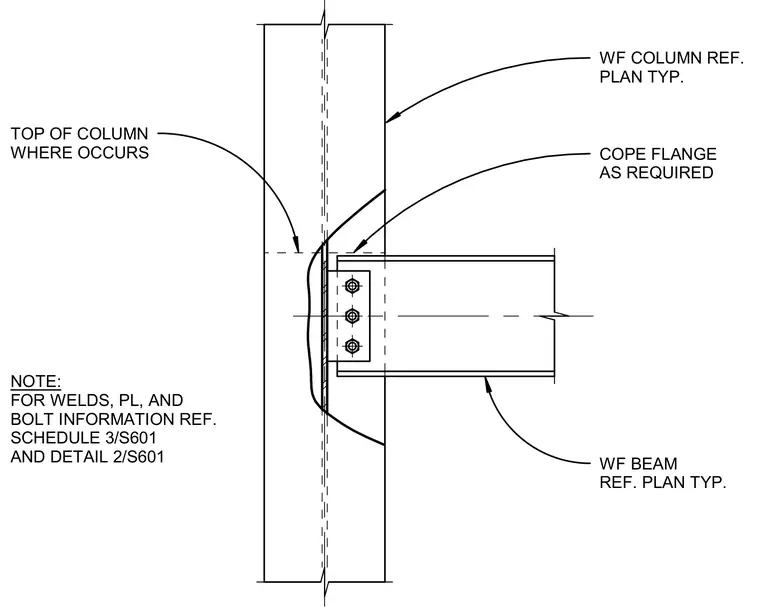

WF COLUMN REF. PLAN TYP. COPE FLANGE AS REQUIRED WF BEAM REF. PLAN TYP. TOP OF COLUMN WHERE OCCURS NOTE: FOR WELDS, PL, AND BOLT INFORMATION REF. SCHEDULE 3/S601 AND DETAIL 2/S601
