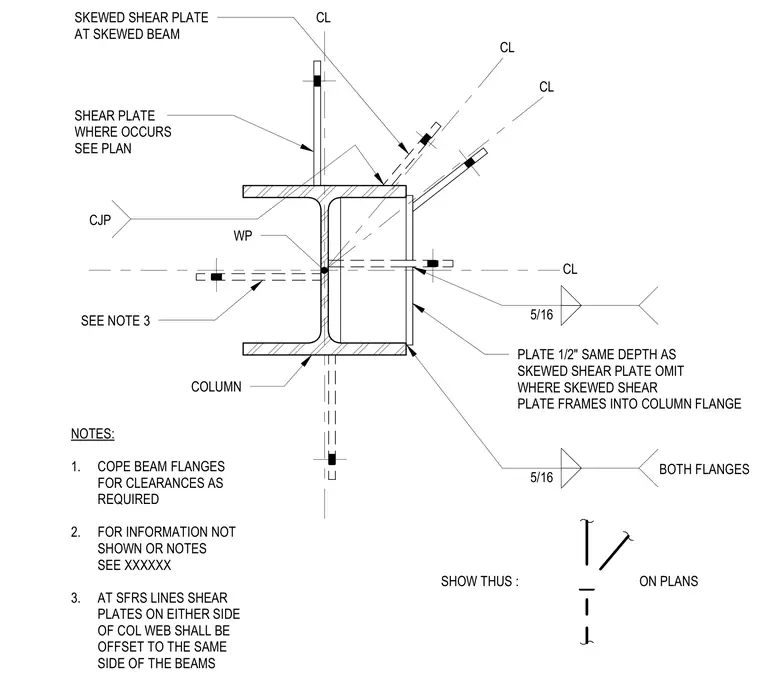

This structural steel connection details a wide-flange column framing multiple beams using skewed shear plates. A one-half-inch plate matches the depth of the skewed shear plate and is omitted where the skewed shear plate frames directly into the column flange. Five-sixteenth-inch fillet welds secure both flanges where indicated, and complete-joint-penetration welds apply at specified locations. Beam flanges are coped for clearances as required, and shear plates on either side of the column web at seismic force-resisting system lines are offset to the same side of the beams.
PLATE 1/2" SAME DEPTH AS SKEWED SHEAR PLATE OMIT WHERE SKEWED SHEAR PLATE FRAMES INTO COLUMN FLANGE NOTES: 1. COPE BEAM FLANGES FOR CLEARANCES AS REQUIRED 2. FOR INFORMATION NOT SHOWN OR NOTES SEE XXXXXX 3. AT SFRS LINES SHEAR PLATES ON EITHER SIDE OF COL WEB SHALL BE OFFSET TO THE SAME SIDE OF THE BEAMS SKEWED SHEAR PLATE AT SKEWED BEAM SHEAR PLATE WHERE OCCURS SEE PLAN WP COLUMN SHOW THUS : ON PLANS CL CL CL CL 5/16 5/16 BOTH FLANGES CJP SEE NOTE 3
