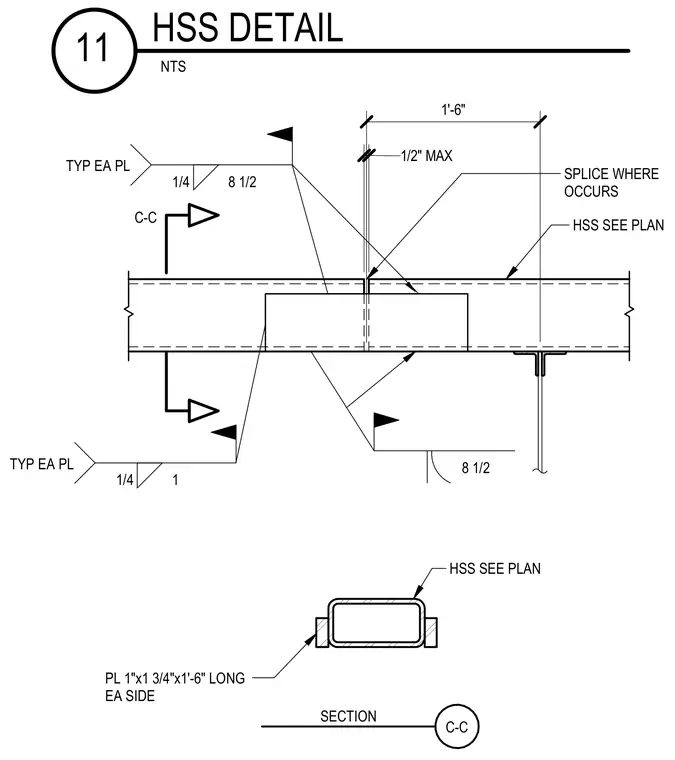

Two hollow structural section members align end-to-end with a half-inch maximum joint gap where the field splice occurs. Steel splice plates measuring one inch by one and three-quarters by one foot six inches long attach to each side of the structural tubes. Fillet welds connect the splice plates with one-quarter inch sizing typical on each plate. Section C-C confirms the profile of the structural steel tube and the side plate placement.
C-C SECTION 1'-6" 1/2" MAX 1/4 8 1/2 TYP EA PL C-C HSS SEE PLAN PL 1"x1 3/4"x1'-6" LONG EA SIDE 1/4 1 TYP EA PL 8 1/2 SPLICE WHERE OCCURS HSS SEE PLAN NTS HSS DETAIL 11
