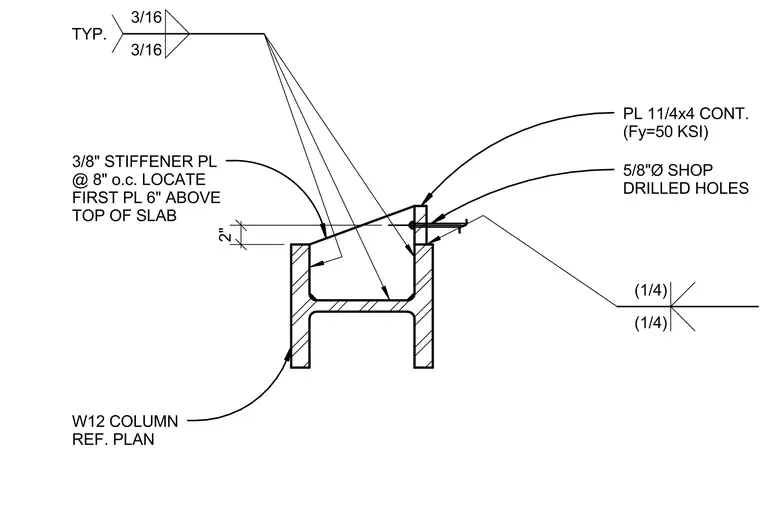

A W12 column supports a continuous 1-1/4 inch by 4 inch plate with a yield strength of 50 KSI, connected via shop-drilled 5/8 inch diameter holes. Three-eighths inch stiffener plates are spaced at 8 inches on center, with the first plate located 6 inches above the top of the slab. Fillet welds of 3/16 inch and 1/4 inch sizes secure the assembly components according to typical structural specifications.
3/8" STIFFENER PL @ 8" o.c. LOCATE FIRST PL 6" ABOVE TOP OF SLAB 2" 3/16 3/16 TYP. W12 COLUMN REF. PLAN (1/4) (1/4) PL 11/4x4 CONT. (Fy=50 KSI) 5/8"Ø SHOP DRILLED HOLES
