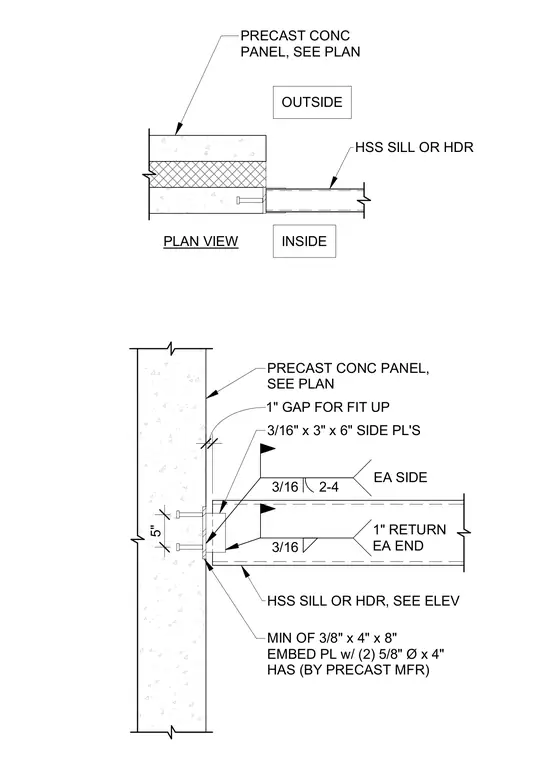

An HSS sill or header connects to a precast concrete wall panel via a minimum three-eighths by four by eight inch embed plate with two five-eighths inch diameter by four inch headed anchor studs furnished by the precast manufacturer. Three-sixteenth by three by six inch side plates weld to the HSS member with three-sixteenth inch fillet welds, using four-inch welds on each side and a one-inch return at each end. A one-inch gap is provided for fit-up between the precast concrete panel and the steel framing.
5" 1" GAP FOR FIT UP PRECAST CONC PANEL, SEE PLAN 3/16" x 3" x 6" SIDE PL'S 3/16 2-4 EA SIDE 3/16 1" RETURN EA END HSS SILL OR HDR, SEE ELEV MIN OF 3/8" x 4" x 8" EMBED PL w/ (2) 5/8" Ø x 4" HAS (BY PRECAST MFR) OUTSIDE INSIDE PLAN VIEW HSS SILL OR HDR PRECAST CONC PANEL, SEE PLAN
