Structural · S-96KMY

Typical Non-Composite Deck Opening Less Than 6'-0" Wide Perpendicular to Deck Span

Materials

Steel Composite

Elements

Beams Decks Connections / Plates Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

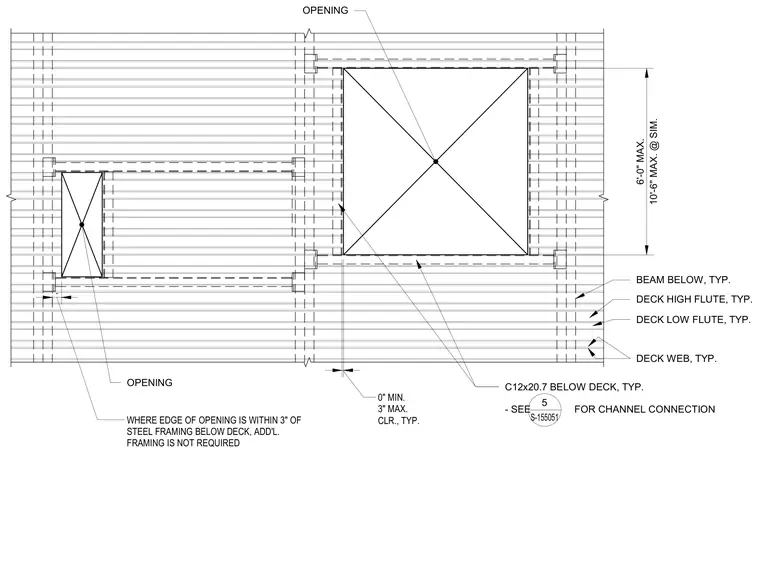

A non-composite metal deck opening less than six feet wide perpendicular to the deck span is framed with C12x20.7 channels located below the deck typical. Additional framing is not required where the edge of the opening is within three inches of the steel framing below the deck. The clear spacing ranges from zero to three inches maximum. Reference is made to sheet S-155051 for channel connections.
