An L6x4x3/8 by 1'-6" long angle is anchored to the underside of a concrete on metal deck with two 1/2-inch diameter concrete screws placed in the low flutes with a 2-inch minimum embedment. A bottom flange brace extends from this angle to a supporting steel beam, with the brace-to-beam connection detailed per plan. A quarter-inch fillet weld is specified near side and far side for the brace connection to the angle. Additional information is referenced on sheet N/S5.01.

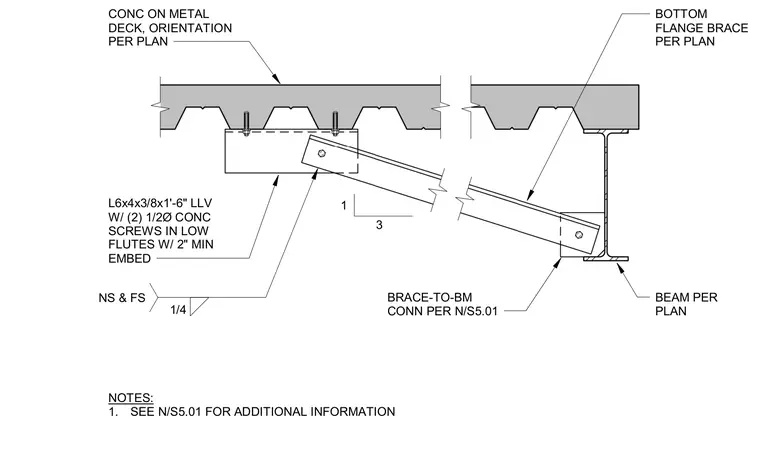

L6x4x3/8x1'-6" LLV W/ (2) 1/2Ø CONC SCREWS IN LOW FLUTES W/ 2" MIN EMBED 1 3 CONC ON METAL DECK, ORIENTATION PER PLAN BOTTOM FLANGE BRACE PER PLAN BEAM PER PLAN 1/4 NS & FS BRACE-TO-BM CONN PER N/S5.01 NOTES: 1. SEE N/S5.01 FOR ADDITIONAL INFORMATION
