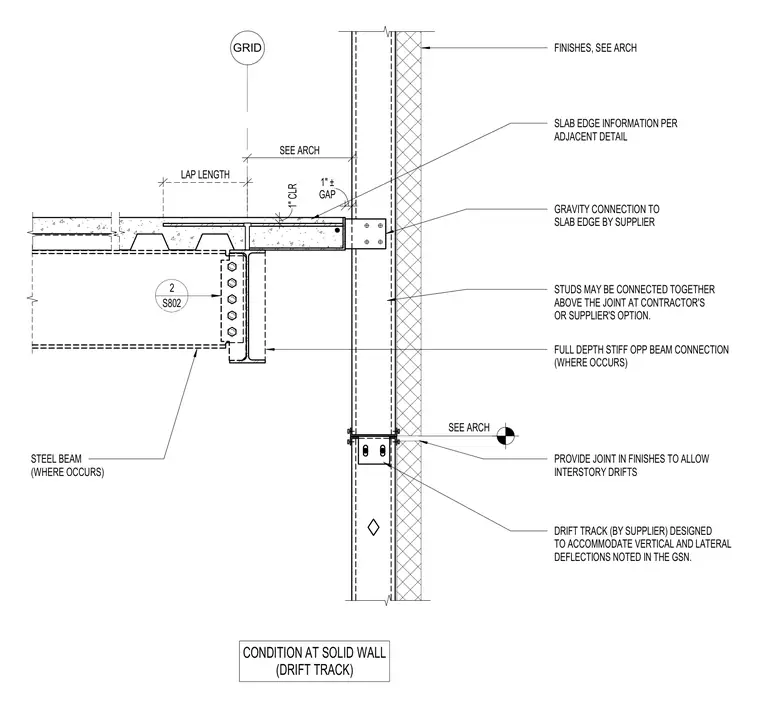

A steel beam and metal deck floor slab connect adjacent to a solid wall with a drift track assembly. A gravity connection ties the slab edge to the wall structure with a one-inch plus-minus gap. A drift track designed by the supplier accommodates vertical and lateral deflections noted in the general structural notes. Full depth stiffeners are provided opposite the beam connection where required, and studs may be connected together above the joint at the contractor's or supplier's option. Finishes and slab edge information are coordinated per architectural drawings, including a joint in finishes to allow interstory drifts.
GRID LAP LENGTH 1" CLR SEE ARCH SLAB EDGE INFORMATION PER ADJACENT DETAIL SEE ARCH GRAVITY CONNECTION TO SLAB EDGE BY SUPPLIER GAP 1" ± DRIFT TRACK (BY SUPPLIER) DESIGNED TO ACCOMMODATE VERTICAL AND LATERAL DEFLECTIONS NOTED IN THE GSN. FINISHES, SEE ARCH FULL DEPTH STIFF OPP BEAM CONNECTION (WHERE OCCURS) 2 S802 CONDITION AT SOLID WALL (DRIFT TRACK) STUDS MAY BE CONNECTED TOGETHER ABOVE THE JOINT AT CONTRACTOR'S OR SUPPLIER'S OPTION. STEEL BEAM (WHERE OCCURS) PROVIDE JOINT IN FINISHES TO ALLOW INTERSTORY DRIFTS
