A diagonal brace constructed from an L3x3x3/8 angle connects to the top flange of a supporting steel beam beneath a concrete on metal floor deck, skewed as required. A 1/4 inch by 6 inch by 0 foot 6 inch weld plate attaches to the diagonal brace and secures to the beam web and flange using 3/16 inch fillet welds. Alternatively, the contractor may provide the connection using two 7/8 inch diameter A325 bolts instead of the field weld. An HSA anchor stud is embedded through the concrete slab into the beam top flange.

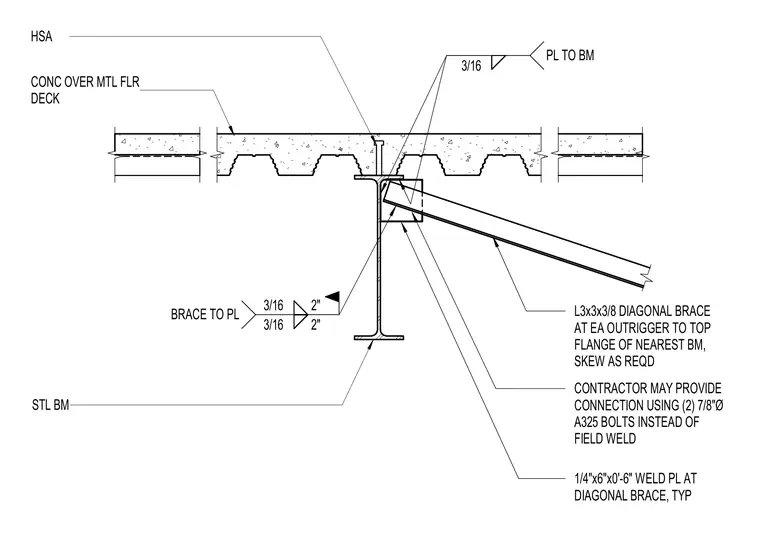

1/4"x6"x0'-6" WELD PL AT DIAGONAL BRACE, TYP L3x3x3/8 DIAGONAL BRACE AT EA OUTRIGGER TO TOP FLANGE OF NEAREST BM, SKEW AS REQD STL BM CONC OVER MTL FLR DECK HSA CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELD 3/16 PL TO BM 3/16 3/16 2" 2" BRACE TO PL
