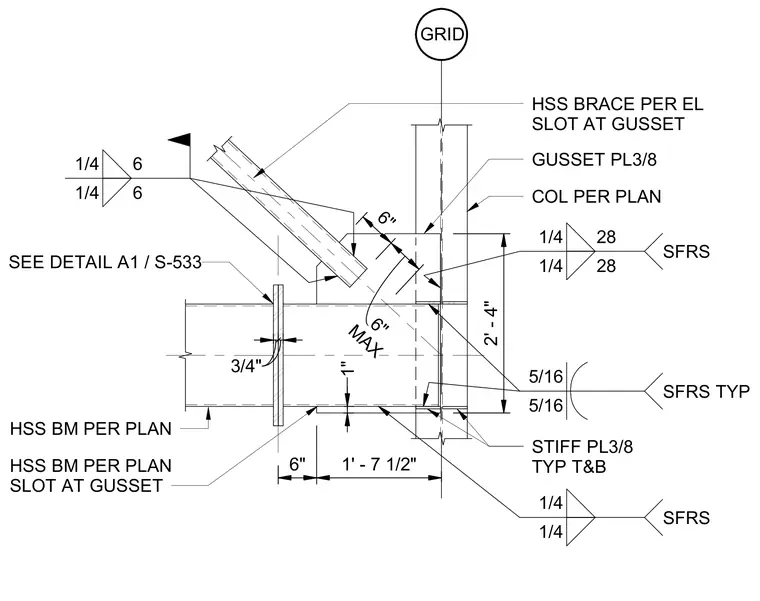

An HSS brace frames into an HSS column and HSS beam connection utilizing a three-eighths-inch thick gusset plate. Three-eighths-inch thick stiffener plates are welded top and bottom with quarter-inch fillet welds, designated as SFRS. The HSS brace features a slot at the gusset connection and is welded with quarter-inch welds on both sides for lengths of six and twenty-eight inches. Five-sixteenths-inch fillet welds typically connect the beam elements. A connection detail reference directs to detail A1 on sheet S-533.
1" COL PER PLAN GUSSET PL3/8 HSS BRACE PER EL SLOT AT GUSSET HSS BM PER PLAN 1/4 6 1/4 6 STIFF PL3/8 TYP T&B 1/4 1/4 SFRS 6" 1' - 7 1/2" 5/16 5/16 SFRS TYP HSS BM PER PLAN SLOT AT GUSSET 1/4 28 1/4 28 SFRS GRID 6" MAX 6" 2' - 4" CONN SEE DETAIL A1 / S-533 3/4" 3/4"
