Structural · S-95P5D

HSS Column and Beam Welded and Bolted Connection Details

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Welded Connection Bolted Connection

About this detail

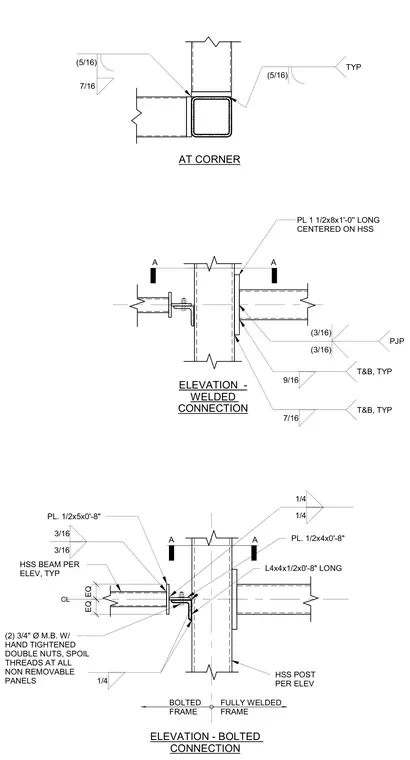

Three steel frame connections involve hollow structural section posts and beams. A corner junction utilizes five-sixteenth-inch fillet welds at the top detail. A welded frame connection features a one-and-a-half-inch by eight-inch plate centered on the hollow structural section, secured with partial joint penetration welds and seven-sixteenth-inch top and bottom welds, alongside three-sixteenth-inch fillet welds in the middle detail. A bolted frame connection utilizes an L4x4x1/2 by eight-inch long angle, two three-quarter-inch diameter machine bolts with hand-tightened double nuts and spoiled threads at non-removable panels, a half-inch by five-inch plate, and three-sixteenth-inch and quarter-inch fillet welds at the bottom detail.
