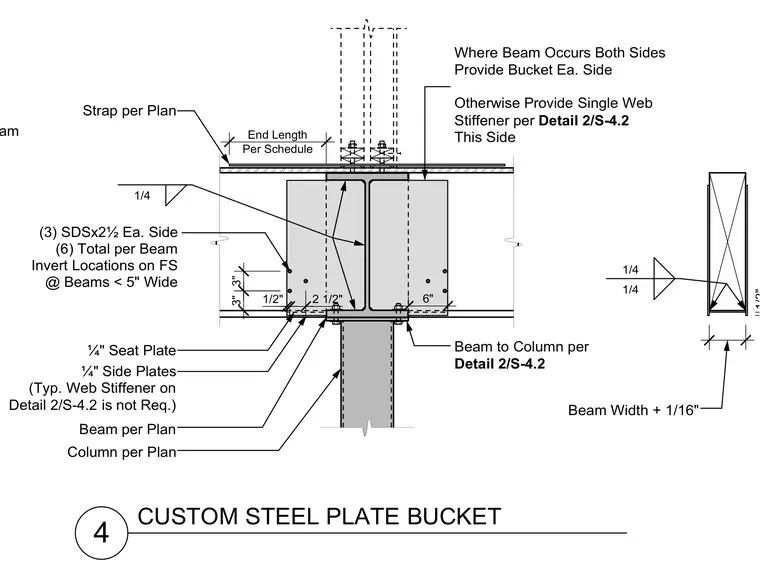

A custom steel plate bucket sits atop the column per plan to support the beam per plan. The assembly features a one-quarter-inch seat plate and one-quarter-inch side plates welded with one-quarter-inch fillet welds. Three SDS by two-and-a-half-inch screws are fastened to each side for a total of six per beam. Where beams occur on both sides, buckets are provided on each side; otherwise, a single web stiffener is provided per detail 2/S-4.2.
4 NOT USED Beam CUSTOM STEEL PLATE BUCKET 1/2" 2 1/2" 3" 3" Beam per Plan ¼" Seat Plate Beam to Column per Detail 2/S-4.2 Where Beam Occurs Both Sides Provide Bucket Ea. Side Otherwise Provide Single Web Stiffener per Detail 2/S-4.2 This Side (3) SDSx2½ Ea. Side (6) Total per Beam Invert Locations on FS @ Beams < 5" Wide Beam Width + 1/16" ¼" Side Plates (Typ. Web Stiffener on Detail 2/S-4.2 is not Req.) 1/4 1/4 1/4 Column per Plan Strap per Plan End Length Per Schedule 1/2" 6"
