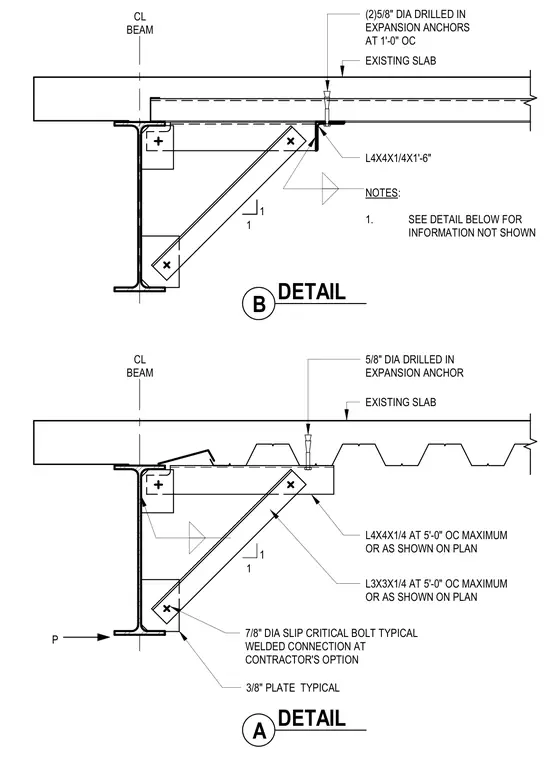

An angle brace connects a steel beam to an existing concrete slab using 7/8-inch diameter slip-critical bolts and 5/8-inch diameter drilled-in expansion anchors. The connection utilizes L4x4x1/4 and L3x3x1/4 structural angles spaced at a maximum of 5'-0" on center or as shown on plan. A 3/8-inch plate is used typically, with welded connections provided at the contractor's option.
1 L4X4X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN L3X3X1/4 AT 5'-0" OC MAXIMUM OR AS SHOWN ON PLAN EXISTING SLAB 1 5/8" DIA DRILLED IN EXPANSION ANCHOR EXISTING SLAB L4X4X1/4X1'-6" CL BEAM 7/8" DIA SLIP CRITICAL BOLT TYPICAL WELDED CONNECTION AT CONTRACTOR'S OPTION (2)5/8" DIA DRILLED IN EXPANSION ANCHORS AT 1'-0" OC CL BEAM NOTES: 1. SEE DETAIL BELOW FOR INFORMATION NOT SHOWN 3/8" PLATE TYPICAL P 1 1 B DETAIL A DETAIL
