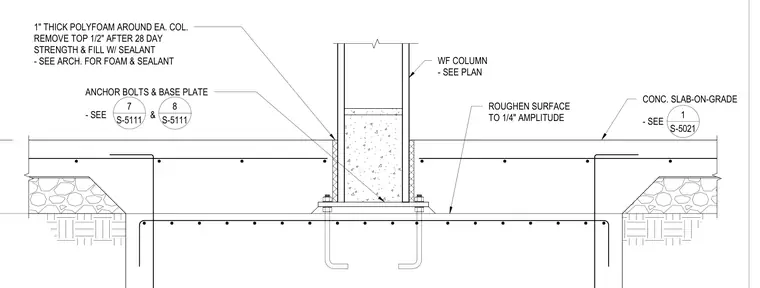

A wide-flange steel column bears on a base plate secured by hooked anchor bolts embedded in a concrete foundation. A one-inch thick polyfoam layer wraps each column, with the top half-inch removed after twenty-eight-day concrete strength is reached and filled with sealant. The adjacent concrete slab-on-grade bears on a roughened surface with a quarter-inch amplitude.
ANCHOR BOLTS & BASE PLATE - SEE & 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. FOR FOAM & SEALANT CONC. SLAB-ON-GRADE - SEE 7 S-5111 8 S-5111 WF COLUMN - SEE PLAN ROUGHEN SURFACE TO 1/4" AMPLITUDE 1 S-5021
