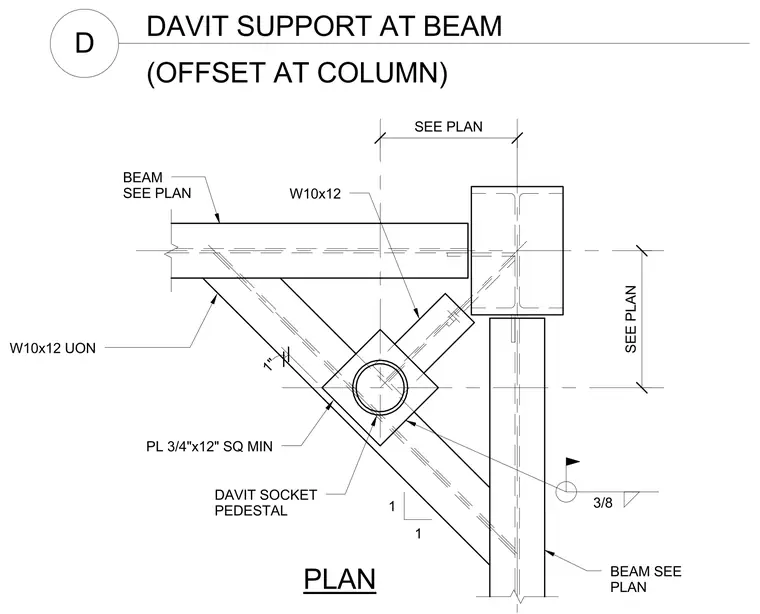

A structural steel framing layout provides support for a roof davit socket pedestal offset at a corner column. W10x12 wide flange structural steel beams frame into the corner with additional W10x12 framing members utilized unless otherwise noted. A three-quarter inch thick by twelve-inch square minimum steel plate supports the davit socket pedestal at the intersection of the framing members. Fillet welds of three-eighths inch size connect the assembly elements, maintaining a one-inch clearance where specified. Secondary beam connections are sized per structural engineering plans.
PLAN W10x12 UON PL 3/4"x12" SQ MIN DAVIT SOCKET PEDESTAL 1 1 BEAM SEE PLAN W10x12 BEAM SEE PLAN (OFFSET AT COLUMN) DAVIT SUPPORT AT BEAM D SEE PLAN 1" 3/8 SEE PLAN
