Structural · S-956H6

Drill 1/2"Ø X 3" Deep Hole Clean And Epoxy

Materials

Metal (misc.)

Elements

Columns Floors / Slabs Decks Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

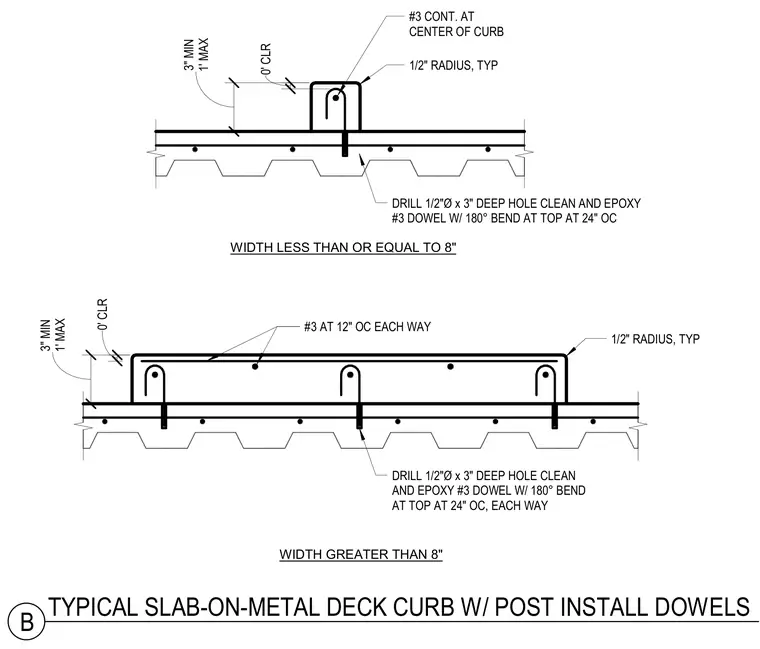

A concrete curb mounts on a slab-on-metal deck using post-installed epoxy anchors. A half-inch diameter hole is drilled three inches deep, cleaned, and filled with epoxy to secure a number three dowel featuring a one-hundred-eighty-degree bend at the top, spaced at twenty-four inches on center. The narrow curb configuration accommodates a continuous number three reinforcing bar at the center, while the wider curb incorporates number three bars at twelve inches on center each way. Both curb profiles feature typical one-half-inch edge radii and maintain dimensions ranging from three inches minimum to one foot maximum. The post-installed dowels anchor the concrete curb directly into the underlying metal deck assembly.
