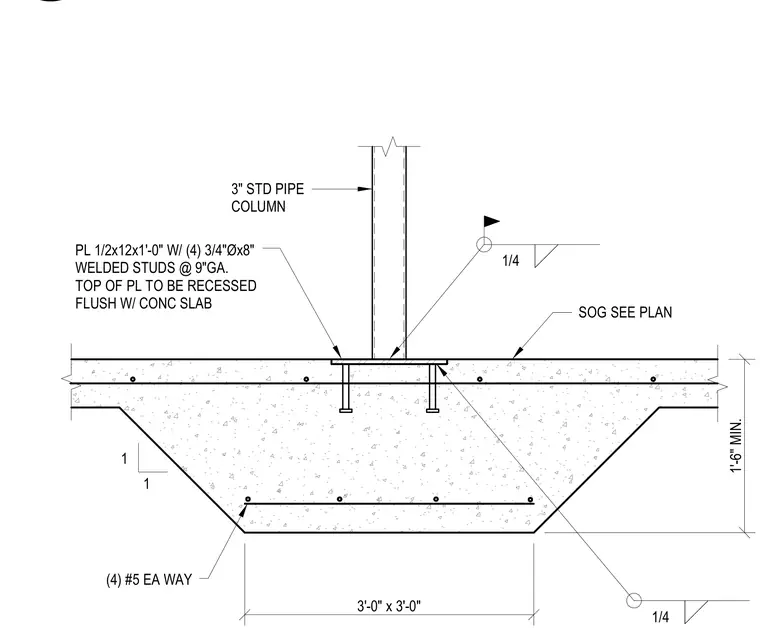

A 3-inch standard steel pipe column bears on a 1/2-inch by 12-inch by 1'-0" steel plate recessed flush with the concrete slab-on-grade. The base plate is anchored with four 3/4-inch diameter by 8-inch welded studs spaced at 9 inches gauge. The column rests on a 3'-0" by 3'-0" concrete footing with a minimum depth of 1'-6". Reinforcement consists of four #5 reinforcing bars each way within the footing.
1'-6" MIN. 3'-0" x 3'-0" 3" STD PIPE COLUMN (4) #5 EA WAY SOG SEE PLAN PL 1/2x12x1'-0" W/ (4) 3/4"Øx8" WELDED STUDS @ 9"GA. TOP OF PL TO BE RECESSED FLUSH W/ CONC SLAB 1/4 1 1 1/4
