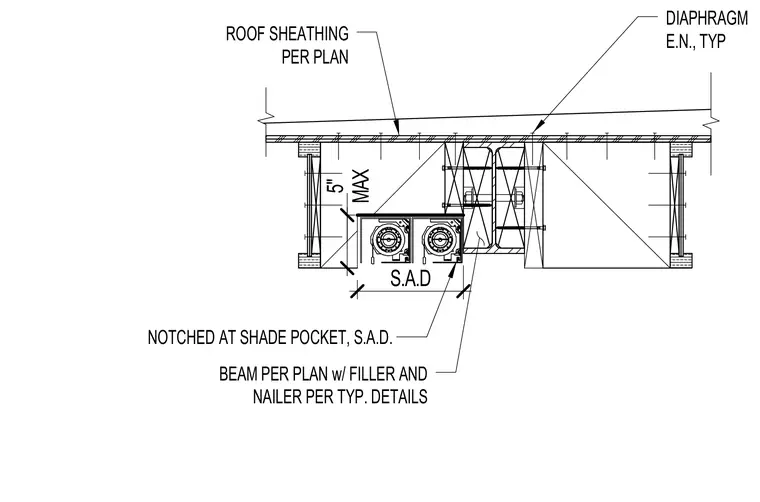

Roof sheathing spans over wood framing featuring a beam per plan with filler and nailer per typical details. The framing is notched to accommodate a shade pocket. A maximum five-inch dimension is specified at the pocket. Diaphragm edge nailing is applied typically throughout.
DIAPHRAGM E.N., TYP ROOF SHEATHING PER PLAN BEAM PER PLAN w/ FILLER AND NAILER PER TYP. DETAILS NOTCHED AT SHADE POCKET, S.A.D. S.A.D MAX 5"
