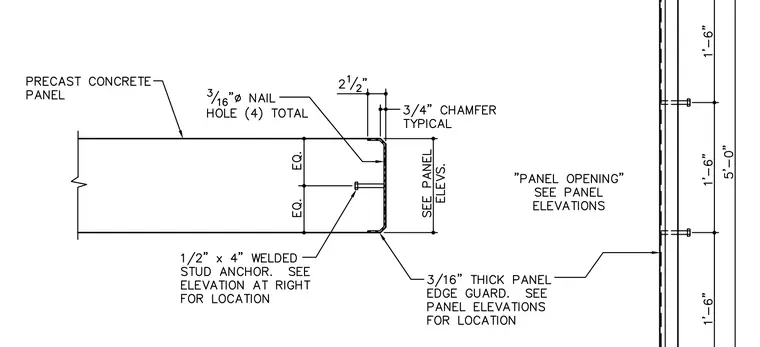

This precast concrete panel edge detail features a 3/16-inch thick panel edge guard secured with a 1/2-inch by 4-inch welded stud anchor centered on the panel thickness. The edge includes a three-sixteenth-inch diameter nail hole with four total locations and a three-quarter-inch typical chamfer at the corners. A panel opening is indicated with reference to panel elevations for location and sizing. Dimension callouts show 2-1/2 inch spacing and equal distances from the center anchor to the top and bottom edges.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
